iglide® J, sleeve bearing, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

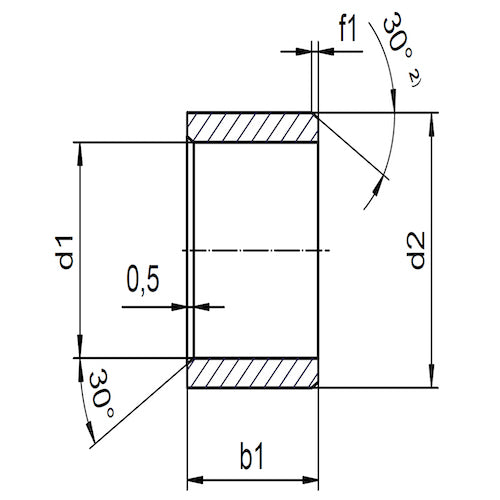

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 5.0 mm |
| Bearing length b1 [mm] | 2.50 mm |
| Ø d1 |
4.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.012 mm, H7 |
| Tolerance shaft |
0 -0.025 mm. h9 |
| d1 after press-fit (max.) | 2.080 mm |
| d1 after press-fit (min.) | 2.020 mm |
| Housing bore (max.) | 5.012 mm |
| Housing bore (min.) | 5.000 mm |
| Shaft size (max.) | 2.000 mm |
| Shaft size (min.) | 1.975 mm |
Description:
- Over 250 dimensions available from stock
- Low wear against different shaft materials
- Low coefficients of friction in dry operation
- Vibration-damping
- Good resistance to chemicals
- Best material to use with soft shaft materials
- Very little humidity absoption
One main advantage of iglide® J plain bearings is the combination of a low coefficient of friction in dry operation and the low stick-slip tendency. With a recommended maximum surface pressure of 5076 psi, iglide® J plain bearings are not suitable for extreme loads.
Features:
- Highly wear resistance on (almost) all shafts
- Low wear against different shaft materials
- Low coefficients of friction in dry operation
- Vibration-damping
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
