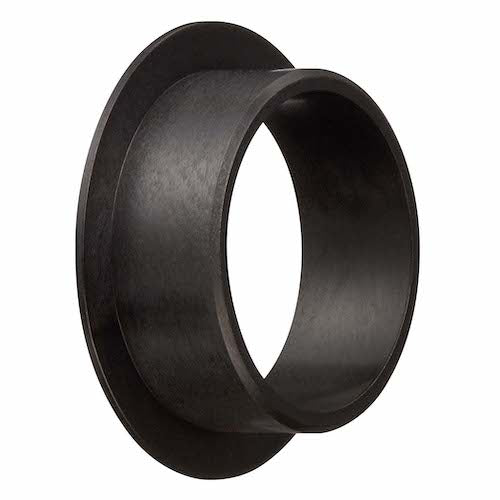

iglide® F, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

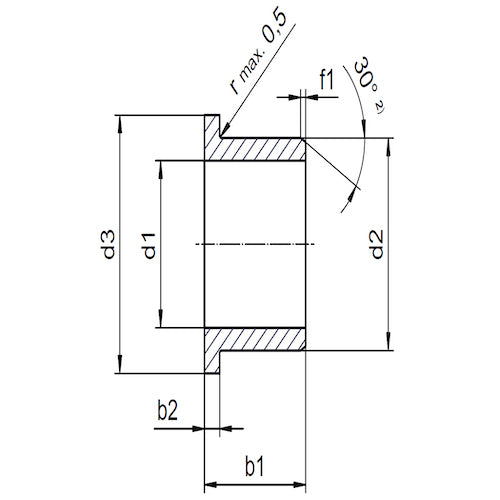

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 5.5 mm |
| Flange diameter d3 [mm] | 9.5 mm |
| Bearing length b1 [mm] | 4.00 mm |
| Flange thickness b2 [mm] | 0.75 mm |
| d1-Tolerance bearing |
+0.030 +0.105 mm, D11 |
| Ø d1 |
4.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.030 +0.105 mm, D11 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.012 mm, H7 |
| Tolerance shaft |
0 -0.030 mm. h9 |
| d1 after press-fit (max.) | 4.105 mm |
| d1 after press-fit (min.) | 4.030 mm |
| Housing bore (max.) | 5.512 mm |
| Housing bore (min.) | 5.500 mm |
| Shaft size (max.) | 4.000 mm |
| Shaft size (min.) | 3.970 mm |
Description:
- Electrically conductive
- High compressive strength
- Good temperature resistance
- High pv value
- Good resistance to chemicals
- Lubrication and maintenance-free
- Standard range from stock
Maximum rigidity and hardness, and extremely conductive: When bearings need to be electrically conductive, especially in applications that need to keep out static, the iglide® F is the right choice.
