Product Information
Specification
| Fiber Test Methods | OTDR |
| Wavelength |
850 nm +/- 10 nm 1300 nm +35/-15 nm |
| Attenuation dead zone |
850 nm: 2.5 m typical 1300 nm: 4.5 m typical |
| Max distance range setting | 40 km |
| Distance uncertainty | +/-(1 + 0.0005*distance + 0.5*resolution) |
| Reflectance uncertainty | ±2 dB |
| Battery | Lithium ion battery pack, 7.2 volts |
| Battery life | Eight hour Auto OTDR operation, dual wavelength, no video probe connected, 150 m of fiber |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Operating temperature* | -10ºC to 45ºC |
| Compatible fiber types | Singlemode |
Fluke Networks OptiFiber Pro Multimode OTDR V2 OFP2-100-M
Description:

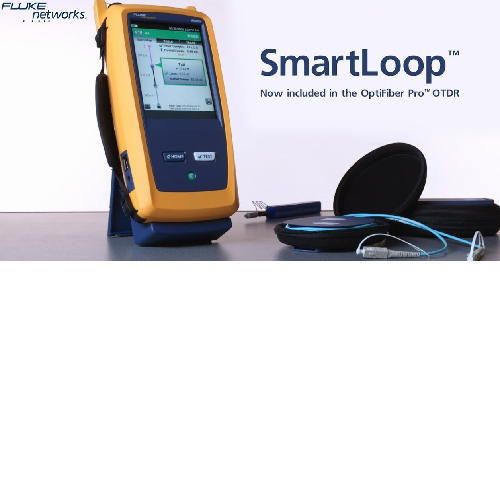

The OptiFiber Pro OTDR is the Tier 2 (extended) fiber certification solution and part of the Versiv Cabling Certification product family. The Versiv line also includes copper certification and OLTS modules. Versiv is designed around the revolutionary ProjX management system and Taptive user interface.
ProjX tracks jobs to ensure they're done correctly the first time, thus reducing rework. With the intuitive Taptive user interface, instrument set-up and operation are so simple, even operators with limited cabling skills can successfully test and troubleshoot a system. Analysis of measurement data and professional test reports are easy with the familiar LinkWare management software.
As enterprises consume more storage resources and adopt higher bandwidth (40G, 100G) datacenter architectures, the resilience of the cabling infrastructure becomes highly dependent upon maintenance tools to ensure fiber reliability.
Features:

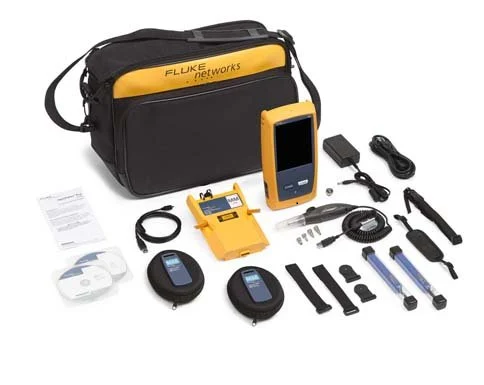

- Includes Versiv mainframe, Multimode OTDR module and WiFi
- Automatic graphic mapping of events, including connectors and splices
- Optimized for use in data centers
- Compatible with Linkware Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC Cable Test Management Software.
- Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels.
