Product Information
Specification
Current measurement | |
Range | 0-1 A AC or DC |
Resolution | 1 mA |
Accuracy | 0.2% + 2 LSD (DC) |
Current sourcing | |
Range | 0.2% + 2 LSD (DC) |
Resolution | 0.05% of span |
Drive capability | 24 V Compliance or 1200 Ω @ 20 mA |
Frequency | 19.999 kHz, 0.005% + 1 LSD |
Resistance measurement |
40 MΩ, 0.2% + 1 LSD |
Operating temperature | -20°C to 55°C |
Storage temperature | -40°C to 60°C |
Size (H x W x L) | 1.25 x 3.41 x 7.35 in |
Batteries | 4 AA alkaline batteries |
Part Number | Fluke 789 |
Description :-:

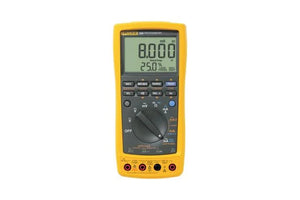

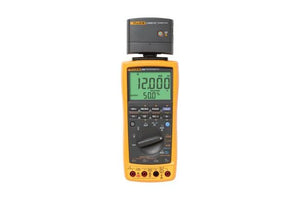

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a full-featured loop calibrator with the power of a CAT III 1000 V, CAT IV 600 V safety rated digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a large, dual display with two levels of backlighting and externally accessible fuse and batteries for easy replacement. And its built-in, selectable 250-ohm HART® resistor eliminates the need to carry a separate resistor.
The 789 also has a built-in 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can also add the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location.
Key Features :-:
- ☸ Compact digital multimeter and mA loop calibrator solution
- ☸ Full-featured mA loop calibrator with built-in 24v Loop Power
- ☸ Quickly and easily troubleshoot every part of a control loop
- ☸ Large, bright dual-measurement display.
Download PDF Spec Sheet
