Product Information
Specification
| Jaw Opening | 34 mm |
| Flexible Current Probe Diameter | 7.5 mm |
| Flexible Current Probe Cable Length |
1.8 m |
| Operating Temperature | 10°C – +50°C |
| Operating Humidity | Non condensing (< 10 –°C) ≤ 90% RH (at 10°C – 30°C) ≤ 75% RH (at 30°C – 40°C) ≤ 45% RH (at 40°C – 50°C) |
| Operating Altitude | 3000 meters |
| EMC | EN 61326-1:2006 |
| Temperature Coefficients | Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C |
| Batteries | 2 AA, NEDA 15A, IEC LR6 |
| Resistance |
Range : 60 kΩ | Resolution : 0.1 Ω (≤ 600 Ω) | 1 Ω (≤ 6000 Ω) | 10 Ω (≤ 60 kΩ) |
| Accuracy | 2% ± 5 digits (10-100 Hz) 2.5% ± 5 digits (100-500 Hz) |
| Part Number | FLUKE 376 |
FLUKE 376 TRUE RMS AC/DC CLAMP METER WITH IFLEX
Description :-

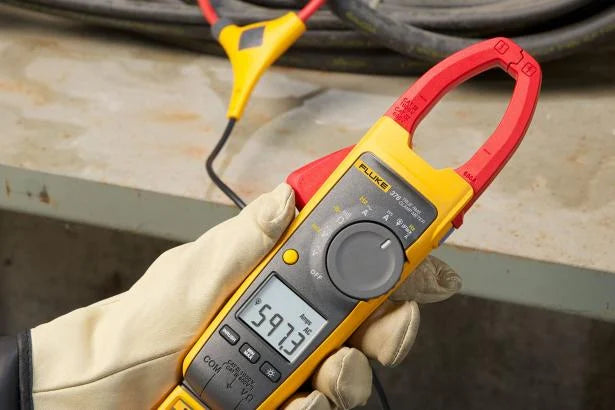

You can measure around awkward sized conductors with the Fluke 376 True RMS Clamp Meter with iFlex®, expanding your measurement range to 2500 A AC. With True RMS voltage and current measurements, the Fluke 376 can read up to 1000 V and 1000 A in both AC and DC modes.
Key Features :-

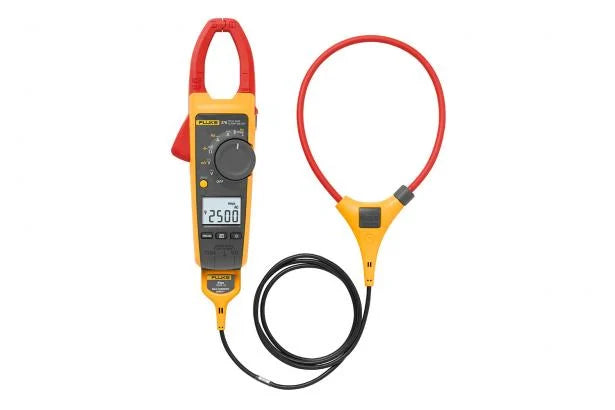

- • iFlex™ flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.
- • CAT IV 600 V, CAT III 1000 V safety rating.
- • Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings.
- • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.
- • Ergonomic design fits in your hand and can be used while wearing personal protective equipment.
- • Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement.

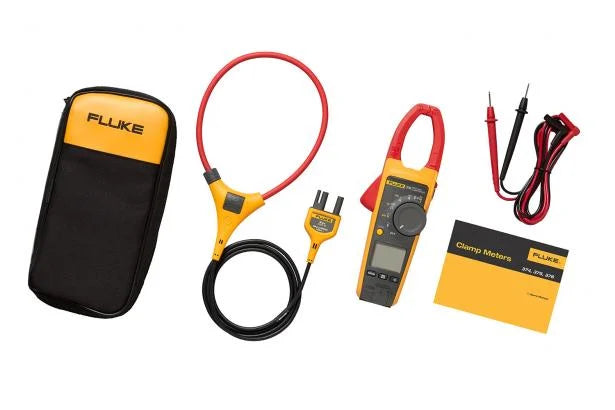

- • Soft carrying case.
Download PDF Spec Sheet
