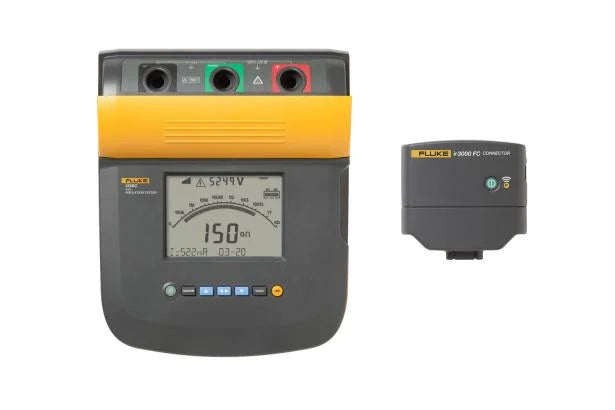

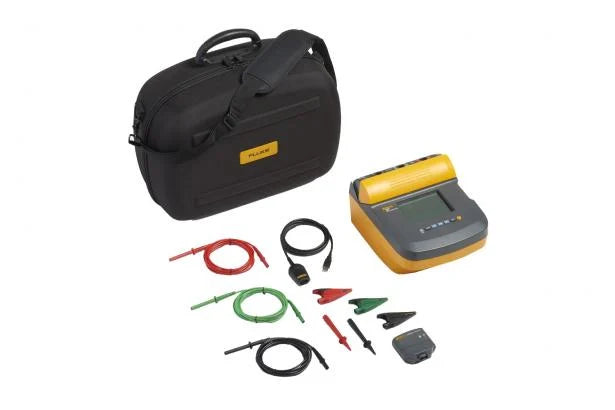

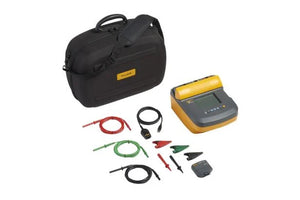

Fluke 1550c FC 5 KV Digital Insulation Tester
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
General Specifications:-
| Display | 75 x 105 mm |
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 |
| Charger Input (AC) | 85 V to 250 V AC 50/60 Hz 20 VA |
| Temperature (operating) | -20°C to 50°C (-4°F to 122°F) |
| Humidity | 80% to 31°C decreasing linearly to 50% at 50°C |
| Altitude | 2000 m |
| Enclosure sealing | IP40 |
| Input overload protection | 1000 V AC |
| Electromagnetic compatibility | EN 61326 |
| Part Number | FLUKE 1550C |
FLUKE 1550C FC 5 KV DIGITAL INSULATION TESTER
Software specifications:-
FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
Electrical Specifications:-
The tester's accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ± .25% per °C, except on the 20% bands add ± 1% per °C.
Description:-

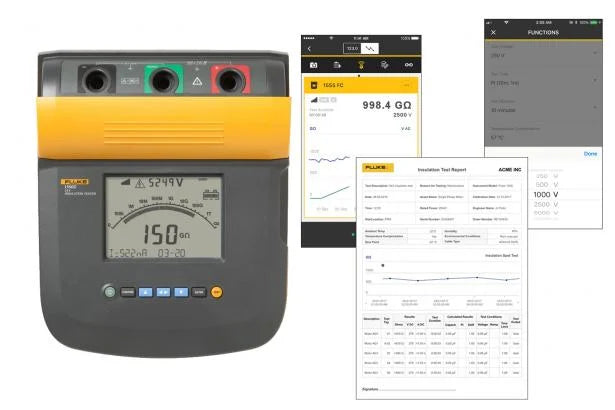

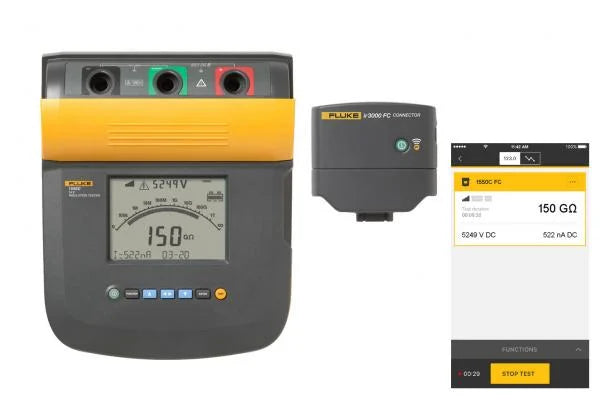

The Fluke 1550C performs digital insulation testing up to 5 kV, and makes data collection easy through the Fluke Connect™ wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, using pre-designed templates that you can customize with company logos. It’s the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur.
Key Features:-
- ( * ) Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup.
- ( * ) Guard system eliminates the effect of surface leakage current on high-resistance measurements.
- ( * ) Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V.
- ( * ) CAT III 1000 V, CAT IV 600 V safety rating.
- ( * ) Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety.
- ( * ) Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall.
- ( * ) Large digital/analog LCD for easy viewing.
- ( * ) Capacitance and leakage current measurement.
- ( * ) Ramp function for breakdown testing.
- ( * ) Resistance measurements up to 2 TΩ.
- ( * ) Timer settings up to 99 minutes for timed tests.
