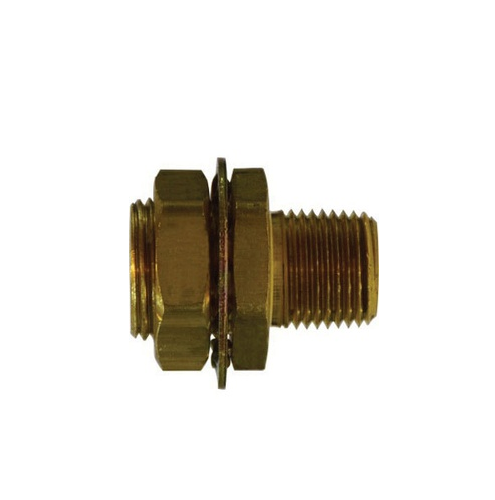

Female To Male Bulkhead Pipe Adapter 28317
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
A Female-to-Male Bulkhead Coupling is a type of mechanical fitting used to pass pipes, hoses, or cables through a bulkhead (a partition or wall) while providing secure connections at both ends. It is specifically designed to connect parts that have different threading types or sizes—one side being female (internal threads) and the other side being male (external threads).
Also Known As :
Bulkhead Fitting (Female-to-Male), Male-Female Bulkhead Adapter, Bulkhead Threaded Connector (Female-to-Male), Female-to-Male Bulkhead Union .
Specification :
| Material | Brass |
| Fitting Type | Adapter |
| Connection Size 1 | 1/4 in |
| Connection Size 2 | 1/2 in |
| Thread Size |
1/4-18 x 1/2-14 |
| Connection Type | FIP|MIP |
| Connection Type 1 | FIP |
| Connection Type 2 | MIP |
| Pressure Rating |
1200 psi |
| Part Number | 28317 |
Features :
• One end of the coupling has female threads, meaning it has internal threads that can connect with male-threaded components.
• The other end has male threads, which are external and connect to female-threaded components.
• The coupling is designed to pass through a bulkhead (a wall, partition, or barrier), creating a seal that prevents leaks.
• Bulkhead couplings are typically designed with gaskets, O-rings, or seals that prevent leaks.
