Equipment Bonding Jumper Kit #6 AWG jumper CPI 40159-010

Product Information

Specification

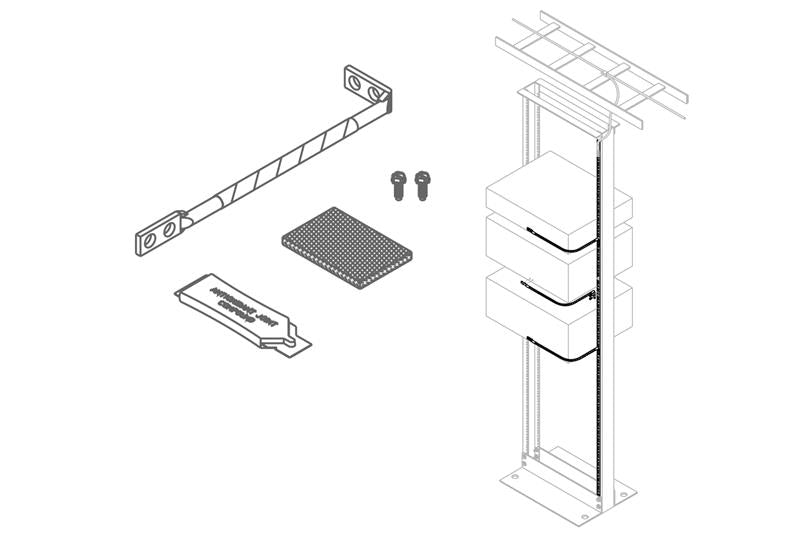

Use the Equipment Bonding Jumper Kit with the Vertical Rack Busbar Kit to bond rack-mount equipment. The Equipment Bonding Jumper Kit includes a 24” L (710 mm) insulated green/yellow helical stripe #6 AWG bonding conductor with a Slotted Compression Lug on one end and a 90° Slotted Compression Lug on the other end. The 90° Slotted Lug attaches to the busbar, allowing easy alignment with equipment. The Slotted Compression Lug attaches to the equipment.

• Each kit includes (1) a 24” L (710 mm) insulated bonding jumper with attached lugs, (2) plated installation screws, an abrasive pad, and a joint compound
• The lugs are made from electroplated tinned copper and have (2) mounting holes spaced .5” to .625” apart that accept 1/4” screws
• UL Listed Components, File E236184, Category KDER (US), KDER7 (Canada) -Bonding and Grounding Equipment.
