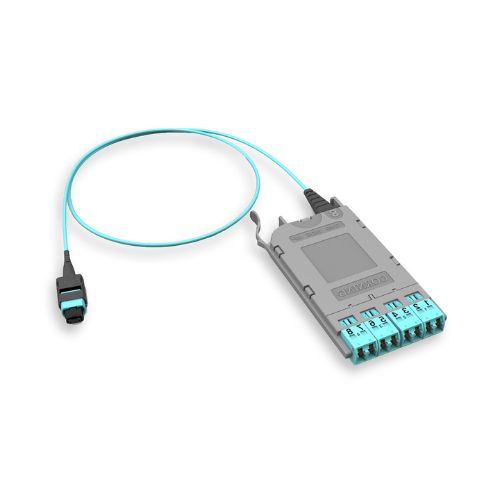

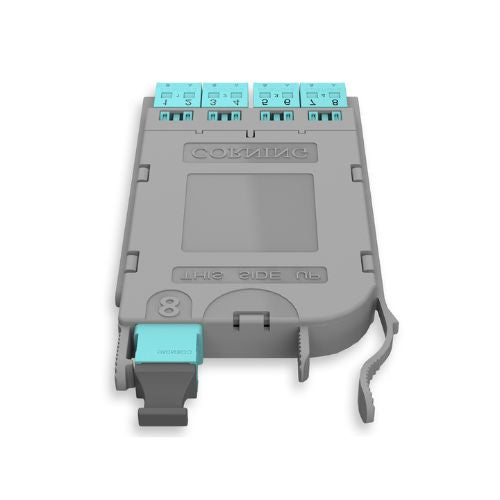

EDGE8 Port Breakout Module 8F LC Duplex to 10 Ft Plenum Interconnect MTP 50 µm Multimode (OM4) Type B ECM8-05E5-QE8B-010F

Product Information

Specification

About:

EDGE8 MTP port breakout modules enable conversion from a single 4-channel parallel optic port (such as 40GSR4 (QSFP), to a patch panel representation with four LC duplex ports for use in a main distribution area.

Specifications :

Product Number : ECM8-05E5-QE8B-010F
EAN Code : 4056418139265
Product Type : Panels
Cable Type : Interconnect
Application : Data Center LAN/SAN
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Adapter Color Front : Aqua
Adapter Type Front : Shuttered LC
Housing Type : Panels
Panel or Module Type : EDGE8
Number of Adapters : 4
Polarity : Universal, TIA-568 Type-B
Module Insertion Loss, Max : 0.35 dB
Connector Type : LC Uniboot
Ferrule Material : Composite
Connector Type : MTP (pinned)
Ferrule Material : Ceramic

Features :

• VFL-compatible shuttered LC adapters : Creates one-hand operation and decreases time needed to test and troubleshoot a link

• Rear-loading capability : Decreases the time to prepare and install modules into fiber housings

• High density : Module enables 576 fibers in a 4U housing and 144 fibers in a 1U

• Low insertion loss performance : Improved performance specs allow for more mated pairs and/or longer link distances

• Corning CleanAdvantage technology and optimised dust cap : Eliminates the need for scoping and cleaning prior to initial field connection
