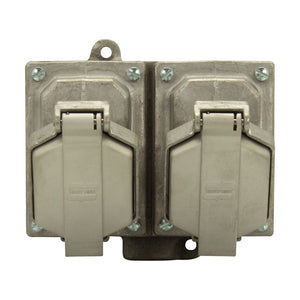

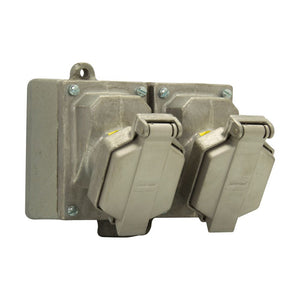

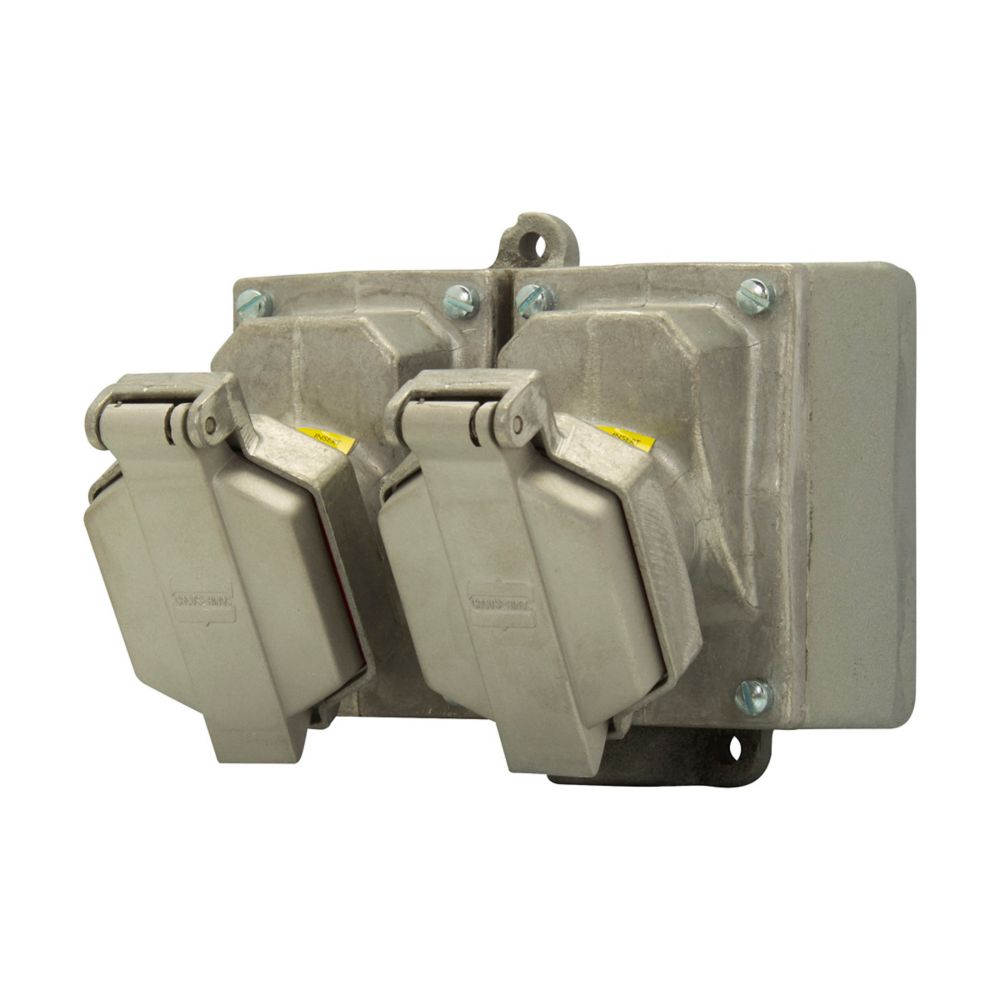

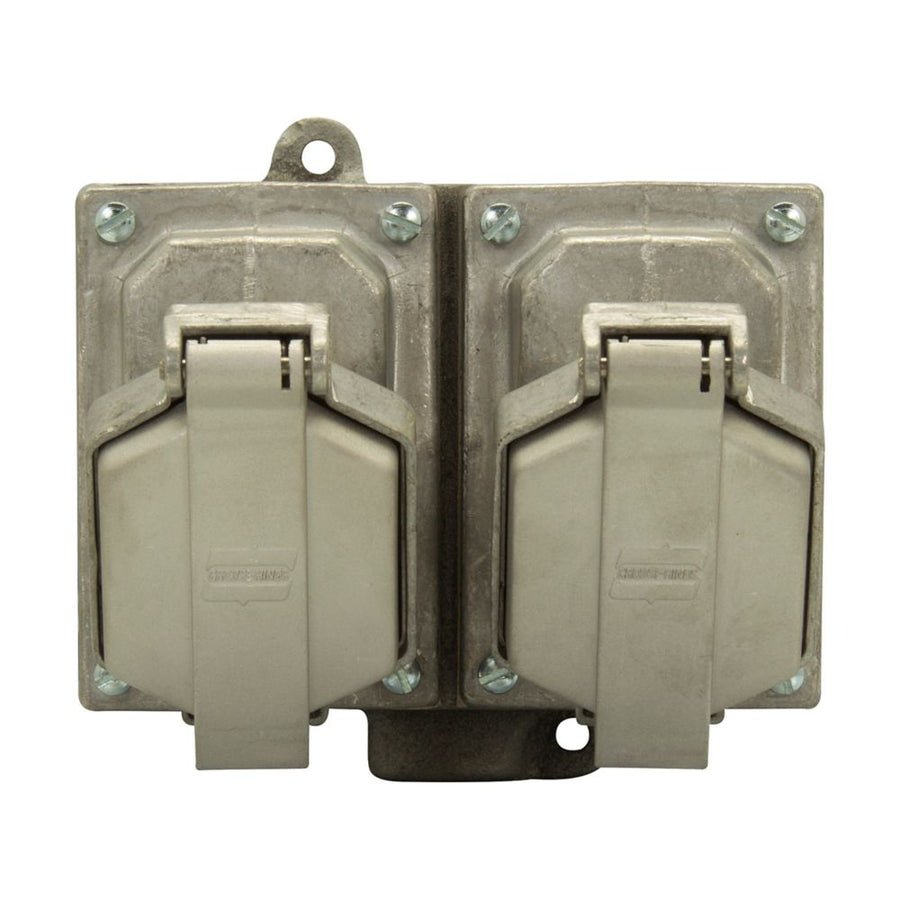

Eaton Crouse-hinds Series Ark-gard Enr Value Receptacle Assembly - ENR22201

Product Information

Specification

Description :-

Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly, 20A, Double, 50-400 Hz, Copper-free aluminum, 5-20R, Two-gang, Dead end, 3/4", 125 Vac

Key Features :-

• ⦿ Ark-Gard 2 receptacle incorporates three spring-loaded slide keys that prevent the receptacle face plate from being rotated until the ENP plug is fully inserted into the receptacle. To make the connection, the ENP plug is fully inserted, and the receptacle face moved inward by pushing the plug forward. The plug is then rotated, closing the circuit. As rotation begins, the plug becomes locked in the receptacle and cannot be accidentally disengaged. In making or breaking the circuit, any resulting electrical arc is confined in the factory sealed chamber.
• ⦿Factory sealed chamber encloses the potential arcing components between two explosionproof threaded joints; these threads are specially coated to guarantee freedom of movement, which ensures on-off action; no additional seals are required
• ⦿ One-piece molded gasket seals cover plate and ENP plug when plug is inserted, providing full environmental protection at the receptacle face
• ⦿ Top hinged cover design with 45° downward angle provides superior protection in damp, wet and dirty locations
• ⦿ Field assembly is accomplished with standard tools
• ⦿Use standard EDS back boxes

Application : -

1. ⦿With portable electrical equipment, such as compressors, tools, lighting systems and similar devices
2. ⦿ In areas made hazardous by the presence of flammable vapors and gases or combustible dusts
3. ⦿ Wherever portable electrical equipment is likely to be transferred from hazardous to non-hazardous areas
4. ⦿ In damp and corrosive areas
5. ⦿ When power requirements do not exceed 20 amperes
6. ⦿ Where general purpose application is required
