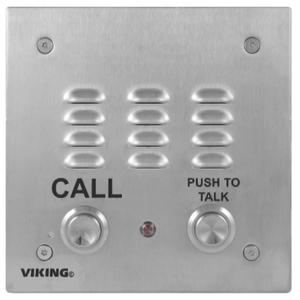

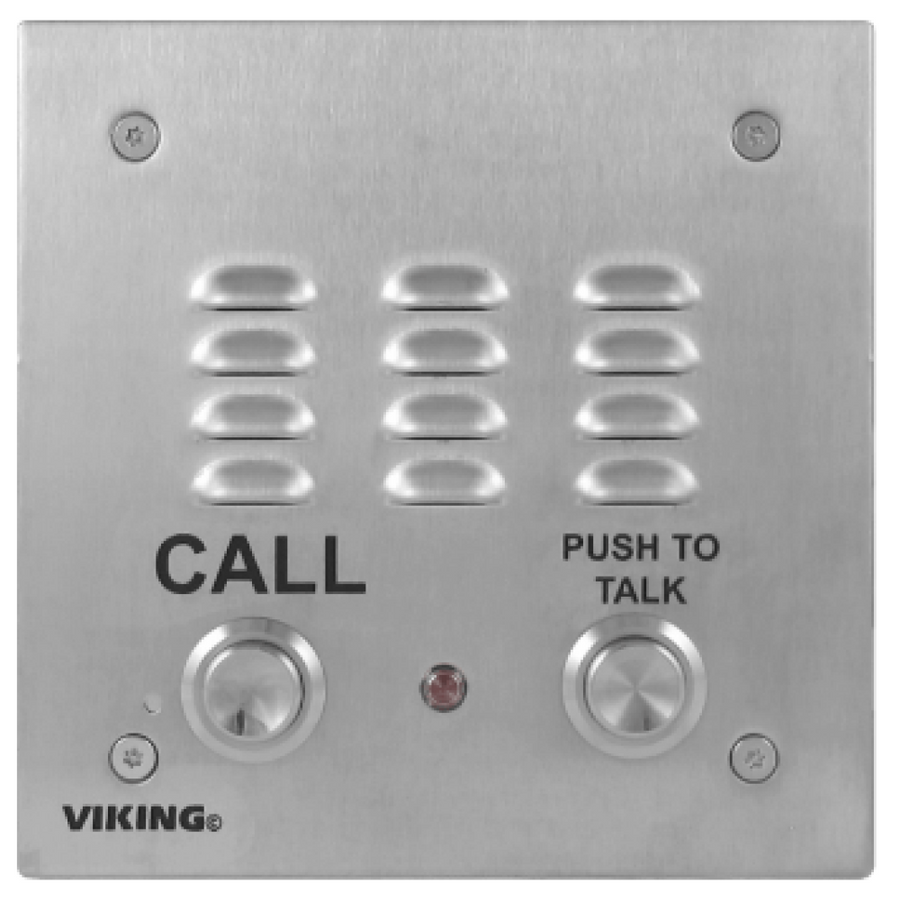

E-30-PT-EWP Push-to-Talk Speaker Phone

Product Information

Specification

Description:

The E-30-PT-EWP shares all of the features of the E-30-PT in addition to Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or condensation EWP products feature foam rubber gaskets and boots, silicon sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.

Features and Benefits:

•Weather Resistant Features: Marine grade 316 stainless steel faceplate, T-screws, and push button switch.

•Switch internally sealed per IP67.

•Mylar speaker.

•Self-draining mic mount.

•Faceplate, mic and speaker gaskets.

•Weather resistant powder paint on optional VE-5x5.

•Designed to meet IP66 Ingress Protection Rating.

•Push to talk button.

•Telephone line powered.

•Non-volatile E2 memory (no batteries required).

•Programmable to dial up to 5 numbers on busy or ring no answer.

•Blue off-hook LED indicator.

•Volume adjustments for microphone and speaker.

•Advanced call progress detection.

•Selectable auto-answer feature for monitoring.

•Selectable push button disconnect.

•Extended temperature range (-30°F to 150°F).

•Flush mountable using included plastic rough-in box.

Specifications:
