Dual Disconnect Adaptor Terminals (Pack of 25)

Product Information

Specification

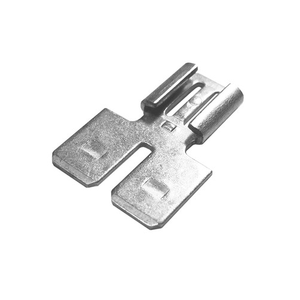

Dual Disconnect Adaptor Terminals

Also Known As:

Disconnect Adaptor Terminals, Terminals and Connectors, Quick Disconnect Terminals

About:

Dual Disconnect adaptor terminals allow for easy separation of the connection if needed. These terminals connect one female 0.250" width, 0.032" tab to two male 0.250" width, 0.032" tab quick disconnect terminals. The male tabs on this terminal are 0.065" apart. To use, simply attach the proper fitting male or female terminals making sure to create a tight solid connection. Do not use terminals that do not fit properly as it can lead to an improper connection or worse. Dual disconnect adaptor terminals are also called fast-on connectors or quick connectors. They are made from tinned copper making them ideal for use in the marine environment. As an added bonus, they are reusable. Their small size, re-usability, and excellent conductivity make them ideal for harsh environments.

 Specifications:

• Length: 0.825 Inch
• Tab Width: 0.263 Inch
• Tab Thickness: 0.109 Inch
• Gap Between Tabs: 0.564 Inch
• Part Number: TD250A-25
