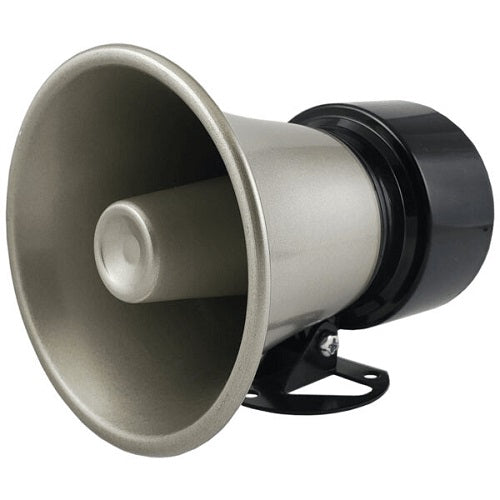

Viking 25AE-70V – Cost Effective Paging Horn for 70V Paging Systems
About :
The 25AE-70V paging horn offers economical coverage for 70V paging systems, ideal for outdoor factory or warehouse environments. Its directional design focuses sound in specific areas like aisles and work zones. It includes a built-in step-down transformer for 25V or 70V systems, with five selectable power taps to adjust speaker volume. This design allows more speakers to be connected using lighter gauge wire, reducing costs and minimizing volume loss compared to 8-ohm systems.
Also Known As :
Paging Horn, Horn, Sound Horn, Loudspeaker Horn, Horn Loudspeaker, Loudspeaker, Speaker
Specification :
|
Paging Unit Type |
Speakers, Paging Horn |
| Power | 10 Watts |
| 70V Power Taps | 62W, 1.25W, 2.5W, 5W, 10W |
| 25V Power Taps | 08W, .16W, .31 W, .62W, 1.25W |
| Viking Taps | 16W, .31W, .62W, 1.25W, 2.5W |
| Frequency Response | 400 Hz to 7,000 Hz |
| Dimensions | 5” (127 mm) diameter |
| Connection | 12” 22 AWG pigtail wires |
Core Features :
• 5-inch diameter horn
• 10-Watt power handling
• Compatible with 25V or 70V paging systems
• Adjustable base for easy mounting and directional adjustment
• Compact design for discrete mounting
• Five switch selectable power taps
• High efficiency
• Designed to meet IP53 Ingress Protection rating when mounted with horn pointing downward at least 45 degrees from horizontal
