Copper Compression Lug - Standard Flared Barrel, Two Hole Tongue With Inspection Window 1000 Kcmil - BLU-100D-FL
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information

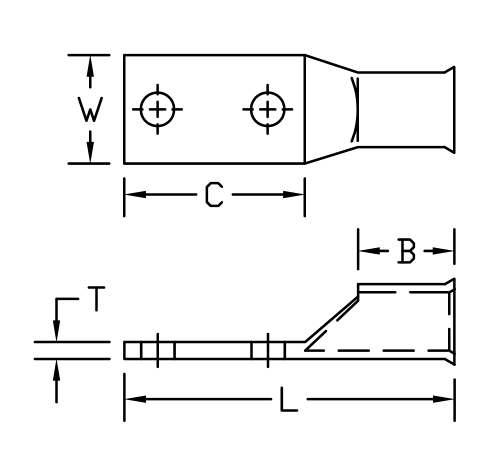

Specification
| Copper Conductor Size | 1000 kcmil |
| W (in.) | 2.17 |
| C (in.) | 2.88 |
| T (in.) | 0.33 |
| B (in.) | 1.88 |
| L (in.) | 5.87 |
| Stud Hole Size | 1/2" |
| Stud Hole Spacing (in.) | 1.75 |
| Color Code | White |
| Burndy Die Index No. | 27 |
| Penn-Union Die Catalog No. | T-27P |
| Wire Strip Length | 2" |
| Part Number | BLU-100DFL |

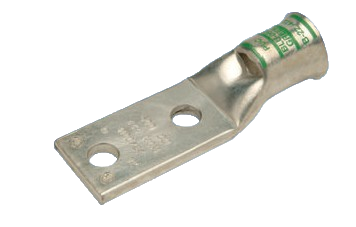

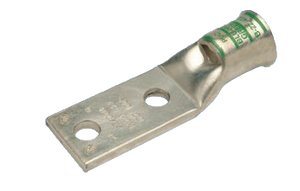

COPPER COMPRESSION LUG - STANDARD FLARED BARREL, TWO HOLE TONGUE WITH INSPECTION WINDOW 1000 KCMIL - BLU-100D-FL
Description :-
- * Suitable for use with Class B, C, I, K, H, G, M and DLO conductors
- * Manufactured from high conductivity seamless copper tubing
- * Tin-plated to inhibit corrosion
- * Flared barrel entry provides easy cable insertion for fine stranded flexible cables and minimizes strain during flexing and movement
- * Two-hole mounting pad assures maximum secureness
- * Inspection window ensures full cable insertion
- * Color coded barrel is marked with die index number
- * Suitable for voltages up to 35 KV
- * 45° and 90° angles are UL listed and CSA certified
- * For 45° or 90° bent tongue, add suffix “-45” for 45 deg. or “-90” for 90 deg. to the catalog number
- * UL listed per UL486A-B and CSA certified per C22.2 No. 65 for power applications
- * UL listed and CSA certified with Penn-Union, Burndy, T&B, Huskie, Greenlee and Versa- Crimp® style tooling
