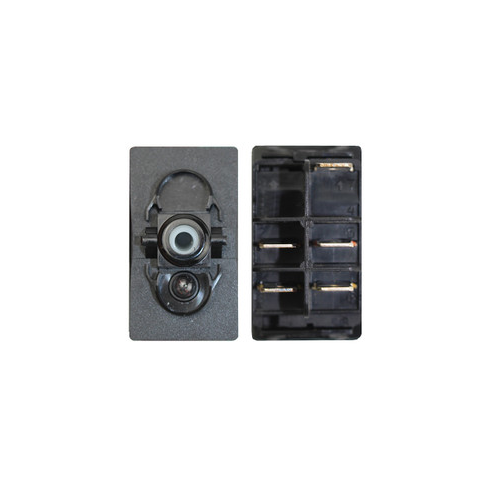

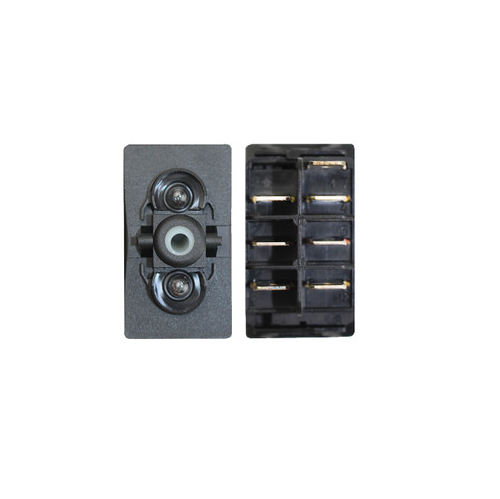

Contura Double Pole Rocker Switch

Product Information

Specification

Contura Double Pole Rocker Switch

Also Known As:

Double Pole Switch, Single Throw, Double Throw, Clear Incandescent, Rocker Switch

About:

Contura V Series rocker switches have a sealed front panel to protect against dust, moisture, and more. They are known for their versatility and protection. This makes them ideal for use in marine applications where exposure to moisture is a primary concern. These general purpose rocker switches are compatible with most actuators' styles. (Actuators/switch covers are sold separately.) This way you can get the switch that you want without having to compromise. Rocker switches are common in the marine industry for more than just their durability. They are also common due to their ease of installation. switches carry clear incandescent bulbs. Choosing the right rocker switch is not an easy choice.

Construction:

• Base Material: Polyester
• Dielectric Strength: 2000V RMS
• Insulation Resistance: 50 MegOhms
• Rating: 20A at 12V DC
• Terminal: 0.250 QC Tabs
• Mounting Method: Snap-in
• Mounting Hole Dimensions: 0.83" x 1.45" (21.1mm x 36.8mm)

Strands:

•Passed a range of environmental, corrosion, temperature, vibration, shock and sealing tests including MIL Std 202F, MIL Std 810C, UL 1500, Iso 8846, IEC 60529, BS 5490 and more
• UL CSA DEMKO SEMKO NEMKO

Features:

• Snap-in mounting
• Multi-step mounting wings provide a secure fit for panel thickness of 0.032" thru 0.025" in an industry standard 0.830" x 1.450" mounting hole
• Silver plated butt contact mechanism provides 50 to 100 thousand electrical cycles and a variety of different electrical ratings
• Single or double pole
• Removable actuators
• Maximum sealing protection with dual seals around lamps and rocker stem certified to IP66 & IP68
• Optional panel seals for additional protection
• Multiple illumination options

Applications:

• General purpose switches
• Marine electrical panels
• Commonly used in Generators, Industrial Controls, and Automotive Markets

Specifications:

• Switch Function - Description
• ON - OFF - Double Pole, Single Throw
• ON - ON - Double Pole, Double Throw
•ON - OFF - ON - Double Pole, Double Throw (Center Off)
• Lamp Color - Clear Incandescent
