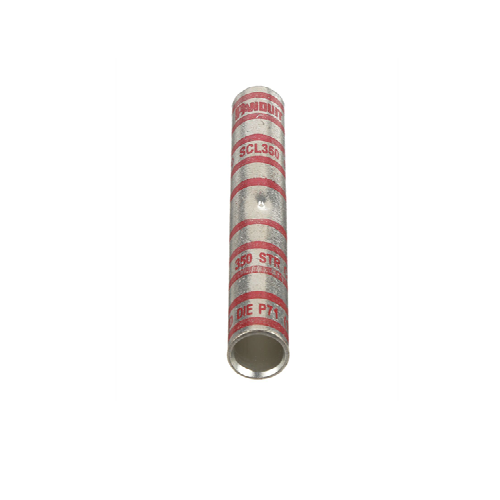

Compression Connectors - Splices Pan-Lug SCL350-X
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
The long barrel on the butt splice provides ample room for inserting the cable strands, ensuring a secure and robust connection. This type of connector is often crimped or compressed onto the cable to create a strong and reliable electrical connection. It's commonly used in industrial and commercial electrical applications where large currents are involved, such as in power distribution systems or heavy machinery.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (kcmil) | 350 |
| Barrel Type | Long |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding |
| Finish/Coating | Tin-Plated |
| Color Code | White |
| Burndy Die Index Number | 18 |
| Panduit Die Index Number | P71 |
| Overall Length (In.) | 4.12 |
| Overall Length (mm) | 104.6 |
| Wire Strip Length (In.) | 2 |
| Wire Strip Length (mm) | 50.8 |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
Features :
• Color coded barrel, internal wire stops,tin plated to inhibit corrosion, premium pull out strength,NEBS
