Compact VoIP Panel Phone with Auto Dialer and Relay Control VIK-K-1900-6-IP-EWP
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification

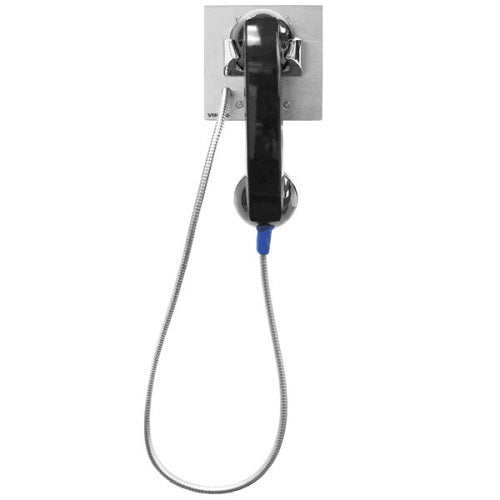

Viking K-1900-6-IP-EWP – Compact VoIP Panel Phone with Auto Dialer and Relay Control and Enhanced Weather Protection
About :
The vandal-resistant K-1900-6-IP-EWP VoIP Panel Phone auto-dials a 1-20 digit programmable number when the handset is lifted, with up to 3 additional numbers if unanswered. Designed for SIP VoIP systems with PoE, it can be programmed via PC or remotely using a static IP. A built-in relay can control gates or door strikes when the call is answered, or activate when the phone is off hook, ideal for controlling cameras. Equipped with Enhanced Weather Protection (EWP), it is suitable for outdoor use, meeting IP66 standards with sealed connections and potted circuit boards for durability.
Also Known As :
Hot-Line Panel Phone, Hotline Telephone, Direct Line Phone, Emergency Phone, Ringdown Phone, Auto-Dial Phone
Specification :
|
Door Phone Type |
Emergency, Outdoor, Vandal Resistant |
| Power | PoE class 1 (<4 Watts) |
| Operating Temperature | -40°F to 140°F (-40° C to 60° C) |
| Humidity | Up to 100% |
| Handset Cable Length | 52” to 57” (132 cm to 145 cm) |
| Audio Codecs | G711u, G711a, G722 |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Connections | (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors |
Core Features :
Vandal Resistant Features
• 14 gauge 304 stainless steel front panel
• Permanent laser etched graphics
• Heavy duty metal hook switch
• Armored handset cable
• T-10 Security Torx drive mounting screws
Weather Resistant Features
• Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating
• 304 stainless steel faceplate
• Marine grade 316 stainless steel Torx security screws
• Faceplate, ear piece, and mouth piece gaskets
• Ring with adjustable volume and cadence
• Hearing aid compatible amplified handset with sealed push button volume control
• SPDT 2 Amp relay contacts for door/gate or camera control
• Optional RC-4A for Secure Remote Relay Control
• SIP compliant
• PoE powered (class 1, <4 Watts)
• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
• Network downloadable firmware
• 54″ armored handset cable
• Cycles to up to three rollover phone numbers on busy or no-answer
• Remotely programmable
• Extended temperature range: -40°F to 140°F
• Selectable auto-answer feature for monitoring
• Includes Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
• Flush mount using a standard double-gang box (not included)
• Diagnostics (for testing relay)
