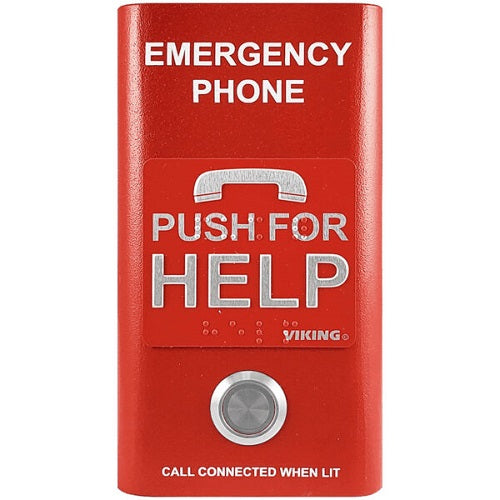

Viking E-1600-RD-IPEWP – Compact VoIP Emergency Phone, Red with Enhanced Weather Protection
About :
The E-1600-RD-IPEWP is an ADA Compliant VoIP Emergency Phone designed for handsfree communication in SIP VoIP systems with PoE. It meets ADA requirements and can be programmed via phone, PC, or remotely. The phone dials up to 5 emergency numbers and delivers either a digital announcement or DTMF code for call location. The stainless steel button has a red LED indicating “Call Connected.” All settings are stored in non-volatile memory, with no batteries needed. Equipped with Enhanced Weather Protection (EWP), it is ideal for outdoor use, meeting IP66 standards to resist precipitation and condensation.
Also Known As :
Emergency Phone, Emergency Call Box, Help Point Phone,
Specification :
|
Door Phone Type |
Emergency, Outdoor, Push Button |
| Power | PoE class 1 (<4 Watts) |
| Material | 0.060″ thick (16 gauge) 304 stainless steel with textured red powder paint |
| Maximum Sound Pressure | 95 dB SPL @ 1m |
| Regulatory Compliance | CE, FCC Part 15 and Canada ICES-003 Class A |
| Audio Codecs | G711u, G711a, G722 |
| Mounting | Surface mount to walls, posts, single gang electrical boxes, or recess mount in elevator phone boxes |
| Connections |
(1) RJ45 10/100 Base-T, (3) gel-filled butt connectors |
Core Features :
• Automatic polling and programming software included
• 2 Amp relay contacts for door/gate or SL-2 strobe light control
• SIP compliant
• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) for clear audio, even in noisy environments
• Non-volatile digital voice announcer with 28 seconds of voice memory
• Handsfree operation
• Dials up to 5 emergency numbers
• Cycles through backup phone numbers on busy or no-answer
• Hangs up on busy signal, time-out or touch tone command
• Extended temperature range of -40°F to 140°F
• VoIP eliminates the need for “Push to Talk” mode
• Network downloadable firmware
• Diagnostics for testing microphone, speaker, and relay
• Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
