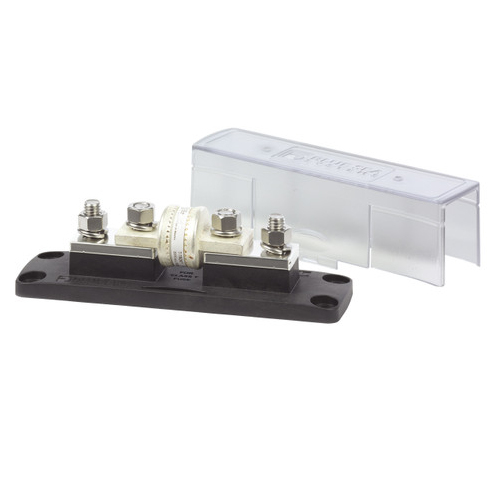

Class T Fuse Block with Cover

Product Information

Specification

Class T Fuse Block with Cover

Also Known As:

Fuse Block with Cover, Fuses and Fuse Blocks, Electrical Parts, Class T Fuses

About:

Class T fuse blocks provide circuit protection for device, including inverters. High interrupt capacity for large battery banks including Lithium-ion and TPPL batteries. Class T fuse blocks have a small footprint, providing substantial space savings in equipment.

Construction:

• The fuse system recommended by most inverter manufacturers for high speed response to short circuits
• 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
• For use on systems up to 160 volts DC
• Large heat dissipating tin-plated copper mounting blocks
• Two #8 accesory terminals located on each end
• Insert molded studs ensure secure fuse mounting
• Clear insulated cover satisfies ABYC/USCG requirements
• Cover breakouts allow wire access in any direction

Specifications:

• Max Voltage : 160V DC
• Max Amperage : 400 Amp
• Fuse Mounting Blocks : Tin-Plated Copper
• Maximum Cable Size : 4/0 AWG
• Maximum Torque : 190 in-lb (21.47 Nm)
• Terminal Stud Size : 3/8" - 16 (M10)
• Part No : EFB-T
