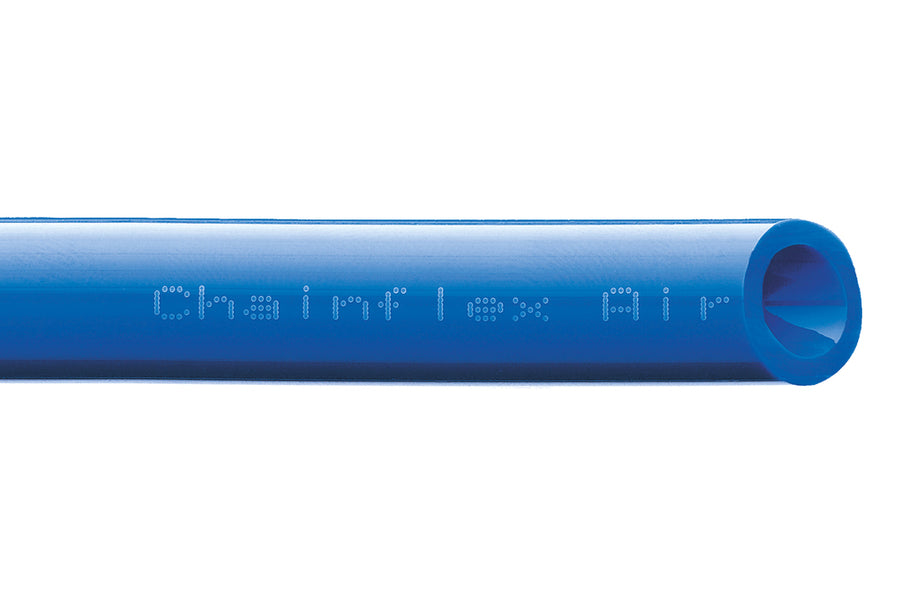

Chainflex Pneumatic Hoses CFAIR CAPU-A-06-0

Chainflex Pneumatic Hoses CFAIR CAPU-A-06-0
Roll over image to Zoom
Chainflex Pneumatic Hoses CFAIR CAPU-A-06-0
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: CAPU-A-06-0

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT

Categories: All

Price:
$0.53 /FT
$0.53 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

[pdf] [/pdf]
General properties
Material abrasion-resistant
Dimensions Outside-toleranced
Operating pressure (at 20°C/68°F) 174 psi (12 bar)
Color Blue
Part Number CAPU-A-06-0
Dimensions
Max. package lengthMax.
1.64 mft (0.5 km)
Inner diameter 0.16 inch (4.0 mm)
Insulation thickness 0.04 inch (1.00 mm)
Outer diameter max. 0.24 inch (6.0 mm)
Dynamic information
Min. bend radius, flexible (factor)
 10.0 x d
Min. bend radius, fixed (factor)
  7.5 x d
Temperature, flexible
 -13 °F to +176 °F (-25 °C to +80 °C)
Temperature, fixed
 -40 °F to +185 °F (-40 °C to +85 °C)
v max., unsupported
 33 ft/s (10 m/s)
v max. gliding
 20 ft/s (6 m/s)



Chainflex Pneumatic Hoses CFAIR CAPU-A-06-0

Description

The CF Air pneumatic hoses are tested in e-chains® over million bending cycles. Their outstanding features include flexibility, high abrasion, oil and coolant resistance.

Features

• For heavy duty applications
• PU hose
• Oil resistant and coolant-resistant
• abrasion-resistant
• Outside-toleranced
• PVC and halogen-free


*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
