Cable Glands 501/453/UNIV Flameproof, Increased Safety, Dust Protection & Restricted Breathing Class - Zones
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Size | O |
| Metric | M20 |
| NPT | 1⁄2" |
| Inner Sheath | Min : 6.5 , Max :11.4 |
| Outer Sheath ‘B’ | Min : 9.5, Max :16.0 |
| Across Flats | 24.0 |
| Across Corners | 26.5 |
| Material Options | Manufactured in Brass, Nickel Plated Brass or 316L Stainless Steel |
| Operating Temperature | -60°C to +80°C |
| Part Number | 501/453/U/O/M20 |
Description:

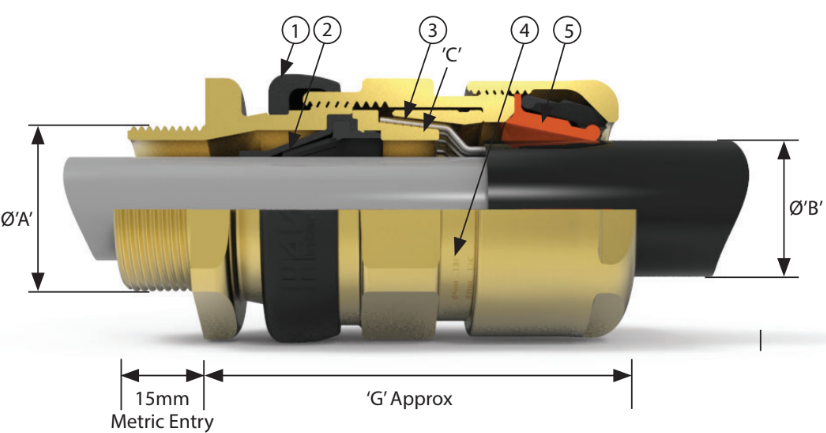

The 501/453 Universal Cable Gland is dual certified Exe/Exd, robust and for use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and
plastic insulated cables.
Applications:
Suitable for use in Zone 1, Zone 21, Zone 2 and Zone 22
