Bussman Series 185 Circuit Thermal Breaker

Product Information

Specification

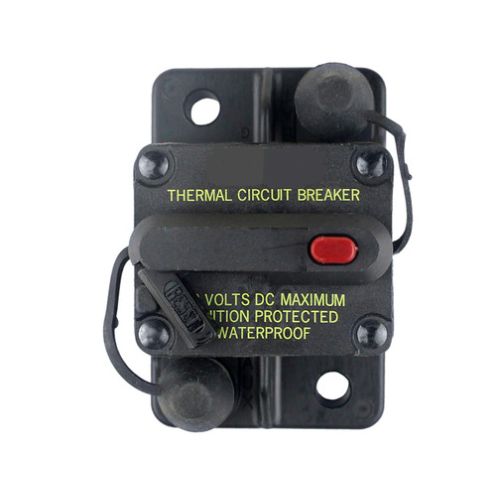

Bussman Series 185 Circuit Thermal Breaker

Also Known As:

Bussman Series , 185 Circuit Breaker, Thermal Breaker, Ignition Protection

About:

Bussman breakers are a type of thermal breaker that have been built to handle some of the toughest marine conditions out there. These breakers are typically used in auxiliary and accessory circuits in truck, bus, RV, and marine systems. They are known throughout the marine industry for their reliability and durability under stress. Other uses of Bussman breakers include battery chargers as well as DC audio systems. Series 185 Bussman breakers are sealed for engine compartment and bilge area applications.

Construction:

• SAE J1171 (ignition protected)

Features:

• Ignition protection
• Series 185 features a push-to-trip option
• Manual & switchable reset circuit breakers
• Single pole thermal surface mount breaker
• Series 185 has a unique reset mechanism which provides visual indication of tripped condition

Specifications:

• Rating : 25-150 Amps, 48 VDC
• Termination : 1/4-22 threaded studs
• Interrupt Rating : 3000 Amp @ 48 VDC
• Ingress Protection Rating : IP67Compliances
• Operating Temperature Rating : -40 °F (-40 °C) to 185 °F (85 °C)
• Part No : ESM
