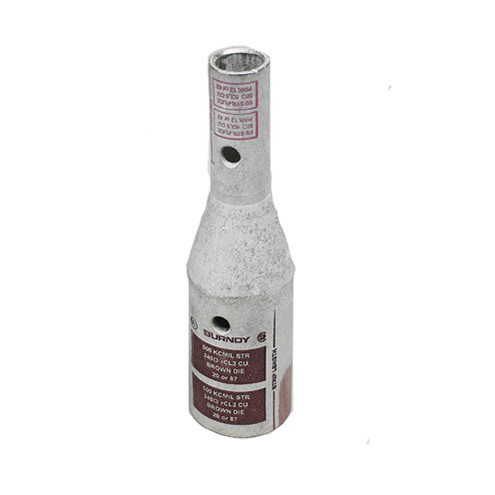

Burndy YSR3939LTCKITC 750 MCM Code to 750 Code w/ Clear Heat Shrink In-Line Reducer Splice Kit Copper

Name: Burndy YSR3939LTCKITC 750 MCM Code to 750 Code w/ Clear Heat Shrink In-Line Reducer Splice Kit Copper
Brand: Burndy
SKU: burndy-ysr3939ltckitc-750-mcm-code-to-750-code-w-clear-heat-shrink-in-line-reducer-splice-kit-copper
Price: 98.89 USD
Availability: InStock
Rating: 4.92 (8263 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

Burndy YSR3939LTCKITC 750 MCM Code to 750 Code w/ Clear Heat Shrink In-Line Reducer Splice Kit Copper

Availability: In stock

Price:

Regular price: $98.89 /Qty
Sale price: $98.89 /Qty

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Qty:

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Burndy YSR3939LTCKITC 750 MCM Code to 750 Code w/ Clear Heat Shrink In-Line Reducer Splice Kit Copper

Description:

CU Splice Reducer, Barrel A 750 kcmil, Barrel B 750 kcmil, Standard Barrel, Internal Chamfer, Tin Plated, Connector is UL/CSA, 90°C Up to 35kV, Kit comes with Clear Heat Shrink, Black/Black Color Code, 24/24 Die Index.

Also known as:

Burndy YSR3939LTCKITC 750 MCM Code to 750 Code w/ Clear Heat Shrink, In-Line Reducer Splice Kit Copper.

Application	Wire Reducing Splice
Color Code	Black, Black
Color Code - Side A	Black
Color Code - Side B	Black
Connector Type	STANDARD BARREL KITS
Die Index	24/24
Die Index Run Side	24
Die Index Tap Side	24
Feature - Barrel Style	Skived
Feature - Barrel Type	Standard
Finish Type	Tin-Plated
Material	COPPER
Plated	Y
Plating Type	Tin - Electro Plated
Dimension - B Length fraction	1-3/4 in
Dimension - B Length inch	1.78 in
Dimension - L Length Overall mm	105 mm
Dimension - Length BB inch	1.78 in
Dimension - Length Overall inch	4.13 in
Dimension - Strip Length inch	1.67 in
Rating - KVA	35 kV
Voltage - Maximum	35000
Voltage Rating	35 kV
Conductor - Copper Str Size	750 KCMIL-750 KCMIL
Conductor - Copper Str Size B Range	750 kcmil
Conductor - Material	COPPER
Conductor Size	750 KCMIL-750 KCMIL
Conductor Type	CODE
Wire Size	750 KCMIL-750 KCMIL
