Burndy YSR3429FXLTCKITC 500 MCM Code to 4/0 AWG Flex W/ Clear Heat Shrink and In-Line Reducer Splice Kit (Pack of 6)

Burndy YSR3429FXLTCKITC 500 MCM Code to 4/0 AWG Flex W/ Clear Heat Shrink and In-Line Reducer Splice Kit (Pack of 6)
Roll over image to Zoom
Burndy YSR3429FXLTCKITC 500 MCM Code to 4/0 AWG Flex W/ Clear Heat Shrink and In-Line Reducer Splice Kit (Pack of 6)
Write a Review
Ask a Question Download PDF Buyer Guide
SKU:
wire-and-cable-accessories

Select a Gauge

Burndy YSR3429FXLTCKITC 500 MCM Code to 4/0 AWG Flex W/ Clear Heat Shrink and In-Line Reducer Splice Kit (Pack of 6)

Availability: In stock

Price:
$266.76 /Qty
$266.76 /Qty
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

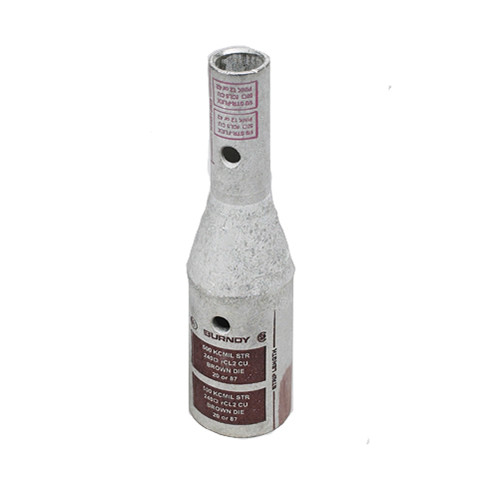

Burndy YSR3429FXLTCKITC 500 MCM Code to 4/0 AWG Flex W/ Clear Heat Shrink and In-Line Reducer Splice Kit

Description:

CU Splice Reducer, Barrel A 500 kcmil, Barrel B 250 kcmil, 4/0 G, H, I, K, M, DLO, Standard Barrel, Internal Chamfer, Tin Plated, Connector is UL/CSA, 90°C Up to 35kV, Kit comes with Clear Heat Shrink, Brown/Yellow Color Code, 20/16 Die Index.

Also known as:

Burndy YSR3429FXLTCKITC 500 MCM Code to 4/0 AWG Flex w/ Clear Heat Shrink, In-Line Reducer Splice Kit.

Application Wire Reducing Splice
Color Code Brown, Yellow
Color Code - Side A Brown
Color Code - Side B Yellow
Connector Type STANDARD BARREL KITS
Die Index 20/16
Die Index Run Side 20
Die Index Tap Side 16
Feature - Barrel Style Skived
Feature - Barrel Type Standard
Finish Type Tin-Plated
Material COPPER
Plated Y
Plating Type Tin - Electro Plated
Dimension - B Length fraction 1-11/16 in
Dimension - B Length inch 1.69 in
Dimension - L Length Overall mm 97 mm
Dimension - Length BB inch 1.44 in
Dimension - Length Overall inch 3.81 in
Dimension - Strip Length inch 1.60 in
Rating - KVA 35 kV
Voltage - Maximum 35000
Voltage Rating 35 kV
Conductor - Copper Str Size 500 KCMIL-250 KCMIL
Conductor - Copper Str Size B Range 500 kcmil
Conductor - Material COPPER
Conductor Size 500 KCMIL-250 KCMIL
Conductor Type CODE/FLEX
Wire Size 500 KCMIL-250 KCMIL

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
