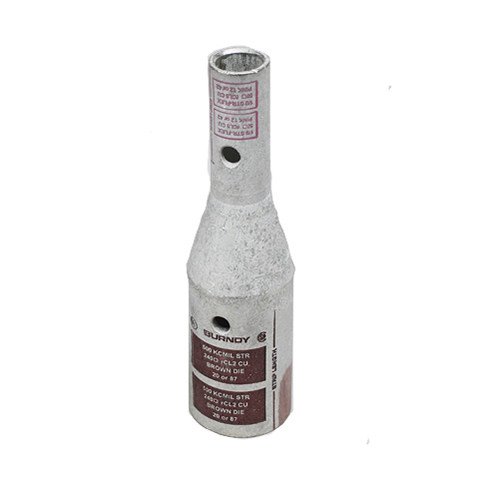

Burndy YSR3425FXLTCKITC 500 MCM Code to 1/0 AWG Flex W/Clear Heat Shrink and In-Line Reducer Splice Kit

Burndy YSR3425FXLTCKITC 500 MCM Code to 1/0 AWG Flex W/Clear Heat Shrink and In-Line Reducer Splice Kit
Roll over image to Zoom
Burndy YSR3425FXLTCKITC 500 MCM Code to 1/0 AWG Flex W/Clear Heat Shrink and In-Line Reducer Splice Kit
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: YSR3425FXLTCKITC
wire-and-cable-accessories

Select a Gauge

Burndy YSR3425FXLTCKITC 500 MCM Code to 1/0 AWG Flex W/Clear Heat Shrink and In-Line Reducer Splice Kit

Availability: Lead time 8 weeks

Price:
$99.00 /Qty
$99.00 /Qty
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification
Burndy YSR3425FXLTCKITC 500 MCM Code to 1/0 AWG Flex W/Clear Heat Shrink and In-Line Reducer Splice Kit

Description:

CU Splice Reducer, Barrel A 500 kcmil, Barrel B 1/0 Flex G, H, I, K, M, DLO, 1/0 AWG (B/C), Standard Barrel, Internal Chamfer, Tin Plated, Connector is UL/CSA, 90°C Up to 35kV, Kit comes with Clear Heat Shrink, Brown/Pink Color Code, 20/12 Die Index.

Also known as:

Burndy YSR3425FXLTCKITC 500 MCM Code to 1/0 AWG w/ Clear Heat Shrink, In-Line Reducer Splice Kit Copper.

Application Wire Reducing Splice
Color Code Brown, Pink
Color Code - Side A Brown
Color Code - Side B Pink
Connector Type STANDARD BARREL KITS
Die Index 20/12
Die Index Run Side 20
Die Index Tap Side 12
Feature - Barrel Style Skived
Feature - Barrel Type Standard
Finish Type Tin-Plated
Material COPPER
Plated Y
Plating Type Tin - Electro Plated
Dimension - B Length fraction 1-11/16 in
Dimension - B Length inch 1.69 in
Dimension - L Length Overall mm 102 mm
Dimension - Length BB inch 1.04 in
Dimension - Length Overall inch 4.01 in
Dimension - Strip Length inch 1.60 in
Rating - KVA 35 kV
Voltage - Maximum 35000
Voltage Rating 35 kV
Conductor - Copper Str Size 500 KCMIL-1/0 AWG
Conductor - Copper Str Size B Range 1/0 AWG
Conductor - Material COPPER
Conductor Size 500 KCMIL-1/0 AWG
Conductor Type CODE/FLEX
Wire Size 500 KCMIL-1/0 AWG

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
