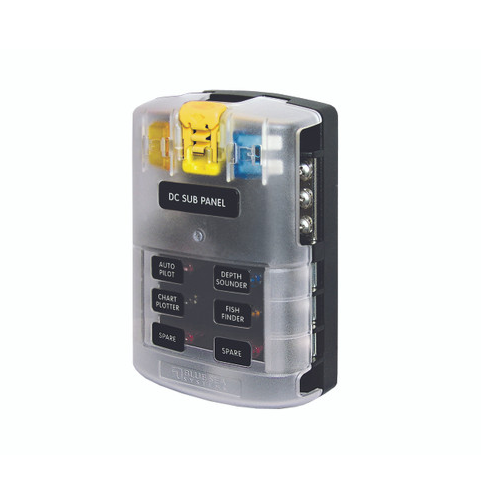

Blue Sea Systems St Blade Fuse Block with Negative Bus & Cover

Product Information

Specification

Blue Sea Systems St Blade Fuse Block with Negative Bus & Cover

Also Known As:

Blue Sea Systems, St Blade Fuse, Fuses and Fuse Blocks, Negative Bus & Cover

About:

Carries a wide range of fuse blocks so that you can find the part that you need to get your project done. The Blue Sea System fuse block with a negative bus is built to handle some of the toughest conditions out there. The fuse buses are made from tinned copper and accept ATO and ATC fuses. The cover meets the ABYC requirements for insulation and incorporates a push to open button making any changes that much easier to make.

Features:

• Positive distribution bus with #10-32 stud
• Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch provding easy access to fuses, storage for two spare fuses, and label recesses
• Fuse blocks with covers include 20 write-on circuit labels
• Tin-plated copper buses and fuse clips
• Accepts ATO and ATC fast acting blade fuses

Specifications:

• Max Voltage : 32-V
• Max Amps per Circuit : 30 Amps (100 Amp Max per Block)
• Spare Storage : 2
• Part No : EFB30-502
