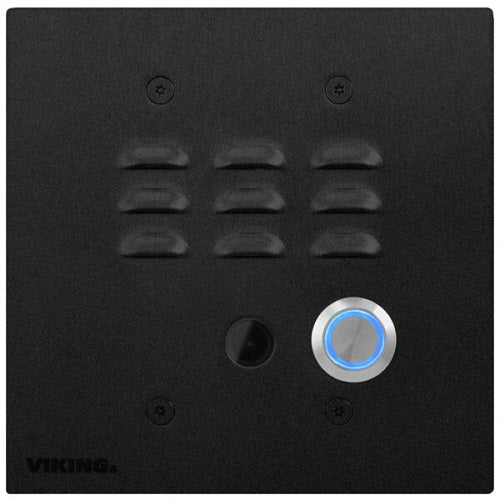

Viking X-35-BK-EWP – Black IP Intercom with HD Video and Enhanced Weather Protection
About :
The X-35-BK-EWP IP Video Intercom offers HD video and handsfree voice communication for SIP VoIP systems. It features an H.264 video camera with a 126-degree wide-angle view, low light sensitivity, and dual 1080p video streams. It supports remote programming via a Web UI and can dial programmable numbers. The intercom includes 2 Amp relay contacts for controlling door strikes or gates, and a blue LED indicator for call status. It is powered by PoE class 2.
Also Known As :
Emergency Phone, Emergency Call Box, Help Point Phone,
Specification :
|
Door Phone Type |
Camera, Intercom, Outdoor, Push Button, Surface Mount, Vandal Resistant |
| Power | PoE class 2 (< 6.5 Watts) |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
| Humidity | Up to 100% |
| Audio Codecs | G711u, G711a, G722 |
| Video Codecs | H.264 and MJPEG |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 1000BASE-T with auto cross over |
| Connections |
(1) RJ45 100/1000 Base-T, (3) gel-filled butt connectors |
Core Features :
• SIP compliant
• ONVIF Profile S compliant
• 126° wide viewing angle
• H.264 and MJPEG video encoding
• Up to 1080p SIP video calling
• Separate NVR stream with audio up to 1080p
• Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
• Remotely programmable via Web UI
• Gigabit Ethernet for up to 1000 Mbps
• 2 Amp relay contacts for door/gate or optional SL-2 strobe light (DOD 242)
• Blue backlit 316 stainless steel push button switch
• PoE powered (class 2, < 6.5 Watts)
• Network downloadable firmware
• T-10 Torx security screws for added security
• Handsfree operation
• Vandal resistant stainless steel prevents corrosion
• Laser etched graphics
• Cycles through backup phone numbers on busy or no-answer
• Includes Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 • Ingress Protection Rating (DOD 859)
• Extended temperature range of -40° F to 140° F
• Textured black powder painted finish
• Volume adjustments for microphone and speaker
• Flush mounts in a standard double gang electrical box (not included), or may be surface mounted using an optional VE-5×5 Surface Mount Box (DOD 424)
• Diagnostics for testing microphone, speaker, and relay
Download PDF Spec Sheet
