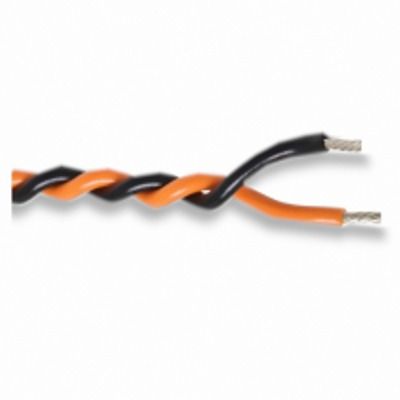

Belden 9497 16 AWG 2 Conductor High-Conductivity Copper Speaker Cable Open Twisted Const

Description:

16 AWG stranded (19x29) ETP high-conductivity tinned copper conductors, PVC insulation, cabled.

Also Known As:

Belden 9497 Cable, Belden 9497 Multi-Conductor Cable, Belden 9497 Power-Limited Tray Cable, Belden 9497 Industrial Communication Cable.

Insulation:

PVC - Polyvinyl Chloride

Outer Shield Material:

Unshielded

Outer Jacket Material:

Unjacketed

Applicable Standards & Environmental Programs:

AWM Specification: UL Style 1007 (300 V 80°C)
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Specifications:

• Part Number: 9497

• AWG: 16

• No of Conductors: 2

• Stranding: 19x29

• Conductor Material: High Conductivity TC - Tinned Copper

• Insulation Material: PVC - Polyvinyl Chloride

• Overall Thickness (in.) :  .023

• Operating Temperature Range: -30°C To +105°C

• UL Temperature Rating: 80°C (UL AWM Style 1007)

• Bulk Cable Weight: 28 lbs/1000 ft.

• Max. Recommended Pulling Tension: 84 lbs

• Min. Bend Radius (Install)/Minor Axis: 2.200 in
