Atum Semi-flexible, General Purpose Adhesive-lined, Moisture Proof Heat-shrinkable Tubing - RK-6025-8/2
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Series | ATUM |
| Military | MIL-DTL-23053/4,* Class 3 |
| Size 4:1 | 8/2 |
|
Minimum expanded as supplied |
(.157) |
|
Maximum recovered after heating |
(.039) |
| Total wall | 1.00 ±.28 (.039 ±.010) |
| Nominal adhesive wall | 0.50 (.020) |
| Operating Temperature Range | –55°C to 110°C |
| Color | Standard Black (-0) |
| Part Number | RK-6025-8/2 |
ATUM SEMI-FLEXIBLE, GENERAL PURPOSE ADHESIVE-LINED, MOISTURE PROOF HEAT-SHRINKABLE TUBING - RK-6025-8/2
Description:
Atum is a semi-flexible, heat-shrinkable tubing with a meltable adhesive inner lining designed to provide moisture proof sealing to a wide range of substrates such as electrical wire vsplices, cable jackets, wire breakouts and electrical components.
The high shrink ratios mean that only seven sizes are required to cover a wide range of substrate diameters.
Typical applications are environmental sealing of electrical components including wire splices and harness breakouts as well as sealing cable ends against moisture ingress.
Applications:

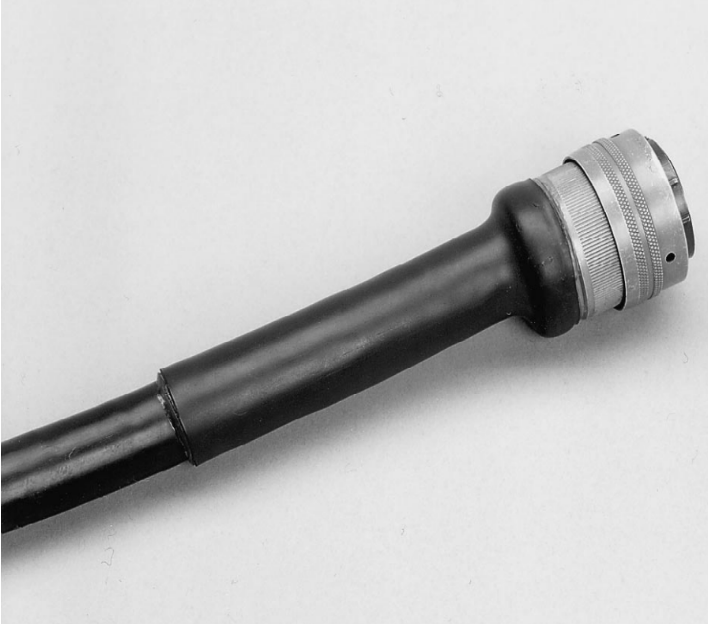

Environmentally seals and protects a wide variety of electrical applications, including back end connector sealing, breakouts, and connector-to-cable transitions. High expansion ratio makes it possible to repair most damaged cable jackets without remov-
ing connectors.
Key Features:
- • 3:1 and 4:1 shrink ratios allow for connector-to-cable sealing.
- • Tubing environmentally seals and protects components and interconnections.
- • Medium wall provides increased mechanical protection.
- • ATUM adhesive bonds to a wide variety of plastics, rubbers, and metals, including polyethylene, aluminum, steel, and copper.
Installation:
- • Minimum shrink temperature: 80°C
- • Minimum full recovery temperature: 110°C
