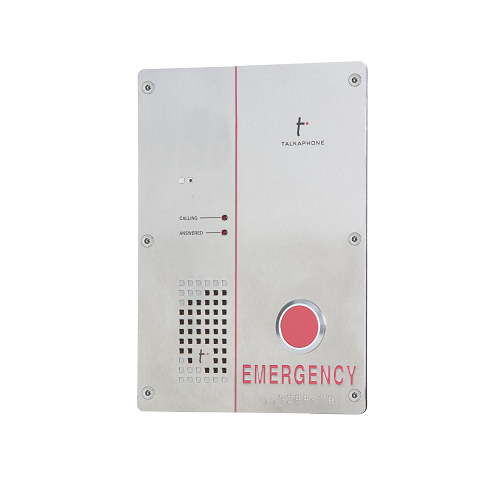

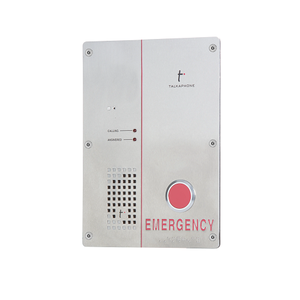

Analog Call Station With Emergency Button Signage ETP-520E

Product Information

Specification

About:

• "EMERGENCY" button can auto-dial up to five (5) phone numbers.
• If the first number does not answer or is busy, unit dials the second number.
• If the second number does not answer or is busy, unit dials the third number—and so on.
• Powered by and operates on a standard analog phone line or extension (no power supply required)
• Two (2) LED indicators for hearing impaired (labeled "CALLING" and "ANSWERED")
• Ability to identify the physical location of the call station through a pre-recorded voice message that plays at the beginning of a call
• [NEW]  Line level output (600 Ohm) connects to an audio amplifier or paging system—providing the capability of receiving an audio page (mass notification) through a standard telephone call

Also Known As:

Analog Call Station, Emergency Call Box With Signage, Analog Emergency Help Point, Emergency Telephone with Signage, Emergency Call Point with Signage, Analog Emergency Response Terminal.

Specification:

• Type: Analog Call Station
• Front Panel:  8.5 x 11.5 in. (216 x 292 mm)
• Back Box: 6.38 x 9.79 x 2.83 in. (162 x 249 x 72 mm)

Features:

• ADA-compliant "EMERGENCY" signage (raised letter and braille)
• [NEW]  "EMERGENCY" button can auto-dial up to five (5) phone numbers.  If the first number does not answer or is busy, unit dials the second number.  If the second number does not answer or is busy, unit dials the third number—and so on.
• Vandal resistant 316 marine grade stainless steel faceplate
• IP66 water resistant construction
• Stainless steel metal button designed for long lasting usage and weather exposure
• Two (2) LED indicators for hearing impaired (labeled "CALLING" and "ANSWERED")
• Operates on regular phone lines for communication and function
• Phone line powered—no power supply or battery backup required
• Monitor mode will auto-answer a call initiated by an attendant—allowing them to monitor the local area
• Ability to identify the physical location of the call station through a pre-recorded voice message that plays at the beginning of a call
• Available Auxiliary Input can be triggered by a momentary dry contact closure (e.g., vehicle detector) to auto-dial a list of phone numbers—order Model ETP- AUXIN-KIT-2 to enable feature
• Two (2) Auxiliary Outputs can each provide a dry contact closure to devices such as a blue light beacon, access control panel, or security camera
• [NEW]  Line level output (600 Ohm) connects to an audio amplifier or paging system—providing the capability of receiving an audio page (mass notification) through a standard telephone call
• [NEW]  Compatible with active induction hearing loop panel (Model AHLP-1)—external power supply required
