Algo 8028 SIP Doorphone (G2)

Product Information

Specification

Description:

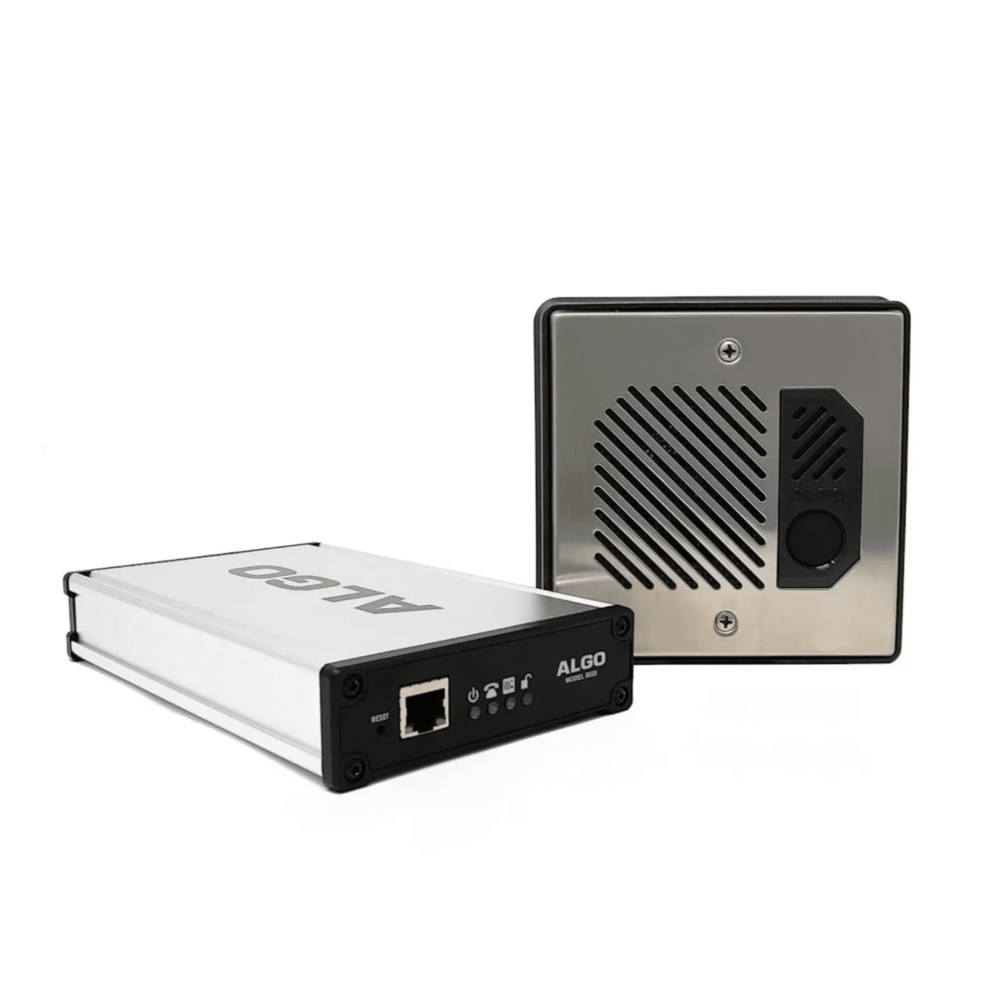

The Algo 8028 SIP Doorphone (G2) and IP Intercom is certified for native compatibility with Microsoft Teams via the Microsoft Teams SIP Gateway! It is an outdoor-rated solution for your security needs The 8028 is a two-part solution that allows for more control over network security and visitor entry The 8028 provides hands-free visitor communication at secure entrance doors and gates The intercoms are outdoor rated, with IP and analog models available.

Compatible with 3rd party SIP endpoints ensures that the 8028 can integrate seamlessly with your VoIP phone system, whether premise-based or cloud-based so guests, visitors, or clients can be greeted from any telephone and be allowed to enter Additionally, in the 8028, the Algo smart relay input may be connected to a door contact to detect when the door is open, offering increased functionality The 8028 is a perfect application for secure business entrances for large environments, such as campuses, hospitals, manufacturing, warehouses, and other gated corporations or enterprises.

Features and Benefits:

•Made in Canada.

•Power Input: PoE /PoE+ IEEE 802.3af/at. Nominal 2W max 8W Optional 24V DC power supply for non-PoE installation or Earth grounding.

•Network Connection: Female RJ45 Jack.

•SIP: UDP, TCP, TLS, RTP, SRTP.

•Multicast: Receive 50 zones IGMP, RTP.

•Configuration: Web interface or provisioning server.

•Provisioning: TFTP, FTP, HTTP, HTTPS DHCP Options 66, 150, 160 Reboot via SIP check-sync.

•Networking: IPv4, IPv6, DHCP, VLAN, MDNS.

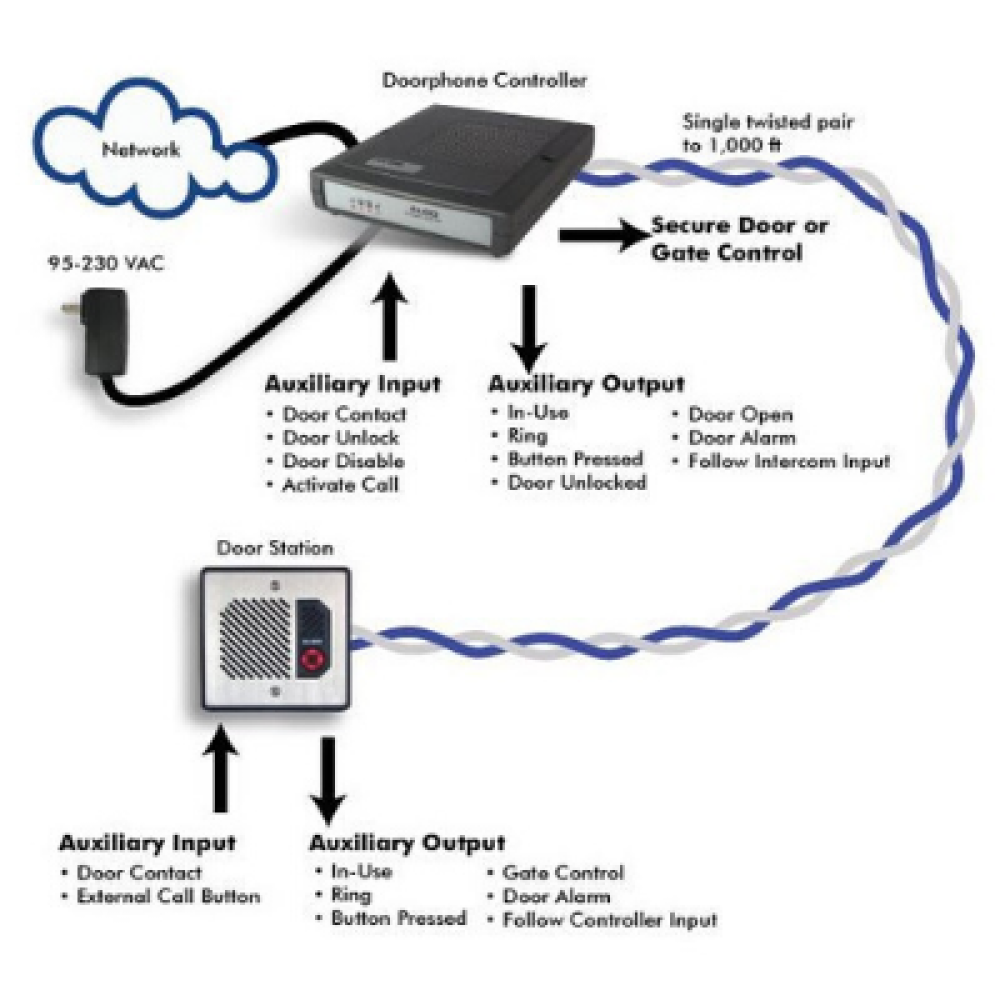

•Door Station Wiring: Single pair twisted wire 24 AWG up to 1000’ (305m) for power, digital signaling and supervision.

•Speaker: Weatherproof mylar.

•Microphone: Omnidirectional.

•Mounting: Flush or surface mount in 2-gang electrical box. The 8028 kit includes a plastic bezel for surface mounting as a convenience. Wall bracket included for control unit..

•Secure business entrances for large environments, such as campuses, hospitals, manufacturing, warehouses, and other gated corporations or enterprises..
