Access Easy Controller 2.1 4 Readers Main Enclosure Power Supply Unit Bosch APC-AEC21-UPS1
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| LAN Ports | Two RJ45 Ethernet |
| Serial Ports | Two RS-232 |
| Extension Port | One RS-485 |
| Voltage Requirement | 12 VDC from PSU |
| Number of Wiegand Readers supported | 4 |
| Number of Monitoring Points | 8* |
| Number of Output Control Relays | 8** |
| Part Number | APC-AEC21-UPS1 |
* Input Monitoring Points on the 4-Reader board consist of door contact input and request-to-exit inputs associated with the reader-controlled door.
** Output Control Relays on the 4-Reader board are the door strike/magnetic lock control relays for the reader-controlled doors.
Description

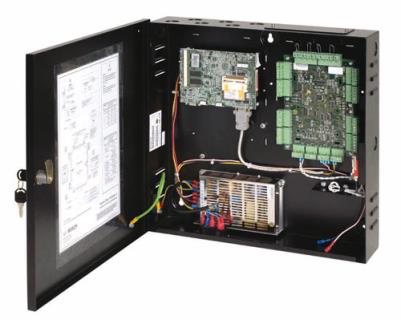

Access Easy Controller 2.1 Enclosure with CPU Board, 4 Wiegand Reader Board, 100-240VAC Power Supply Unit, Compact Flash with software application, Quick Start Guide and CD-ROM.
Overview
• 4 readers expandable to 32 readers
• Supports up to 20,480 cardholders and 100,000 transactions
• Classify cardholders based on 254 access groups
• 255 time schedules, 32 regulars and 32 special holidays
• Anti-passback (APB) capabilities
• 8 Alarm Zones and attendance capture
• Intrusion monitoring up to 64 input and control points
• E-mail or SMS Alert for critical events
• CCTV Integration, Live view, archive retrieval, event verification and in-window PTZ
• Support for multiple languages.
Download PDF Spec Sheet
