96 Port CAT6 4U 110 IDC Patch Panel 042-379/96

Product Information

Specification

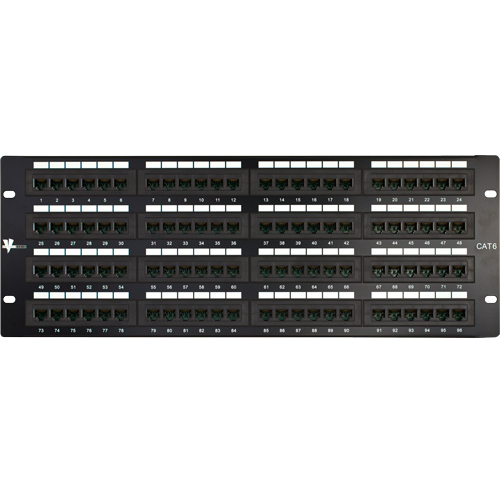

96 Port CAT6 4U 110 IDC Patch Panel 042-379/96

DESCRIPTION :

CAT6 96 Port Panel, 110 Type Termination. 19” Rack Mountable.

FEATURES :

• Flexible design (12&24 ports for 1U; 48 ports for 2U; 96 ports for 4U)

• Made of sturdy, rolled-edge, anodized aluminum

• Fully enclosed design for protection of printed circuitry during termination.

• Color-coded for T568A and T568B wiring schemes.

• Vertical Cable CAT5E &.6 panels are designed for maximum strength and are compatible with standard 110 or Krone Installation tools.

• Our panels fit and install in standard 19 inch cabinets.

• High-density 1U/2U/4U, 19, RMS (rack mount standard) design.

• Meets EIA-310-D specifications.

• Constructed from UL94-V-0 high-impact, fire-retardant ABS or PC material.

• Pair punch sequence enables a pair twist within 1/2, of termination.

• Beryllium copper contacts: 50,µ gold-plated pins over100,µ nickel layer.

• Insertion life cycle: 750 cycles (minimum) / I.D.C. 250 cycles (minimum).

• Operating temperature: -40ºC to +68ºC

• FCC Part 68

• 4xEIA Unit 19(W)x6(H)x1.1/4(D)

• UL Listed, RoHS Compliant
