Product Information
Specification
| Physical Characteristics | |
| Color: | Black |
| Material: | Plastic |
| Product Length: | 3.6 in [92 mm] |
| Product Width: | 1.0 in [25 mm] |
| Product Height: | 3.6 in [9.2 cm] |
|
Weight of Product:
|
3.8 oz [108 g] |
| Part Number: | FAN9X25TX3H |

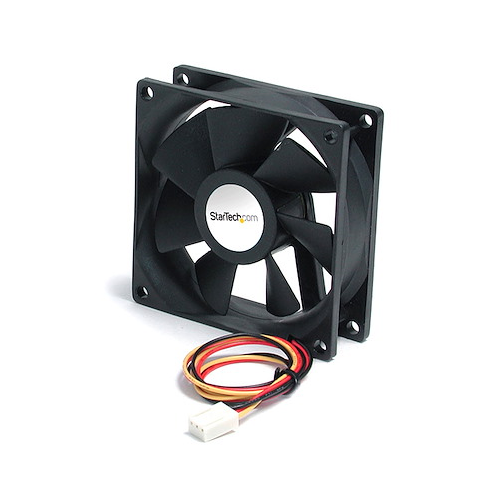

90x25mm High Air Flow Dual Ball Bearing Computer Case Fan 3-pin Connector With TX3
Applications:
• Replace a noisy or failed computer case fan
• Install into a computer chassis to increase air flow and cooling
Description:
This 9.25cm x 9.25cm x 25mm (2600 RPM) computer case fan helps prevent computer systems from overheating, thereby increasing efficiency and stability.
Features:
• Dual ball bearing design
• 3-pin connector with tachometer wire
• Higher speed 2600 RPM operation
Advantage:
• A dual ball bearing design ensures reliability and longer life
• A built-in tachometer allows for easy monitoring of the fan performance
• Higher performance fan with Increased air flow for warmer environments or higher performance components
Connector(s):
• Connector Type(s): 1 - Fan (3 pin, TX3)
Hardware:
• Number of Conductors: 3
• Fan Bearing Type: Ball Bearing
• Warranty 2 Years
Performance:
• Fan RPM: 2600
• Air Flow Rate: 48.43 CFM
• Noise Level: 33 dBA
Power:
• Input Voltage: 12V DC
• Input Current: 0.21 A
• Power Consumption (In Watts): 2.52 W Max
Environmental:
• Operating Temperature: -10 to 80

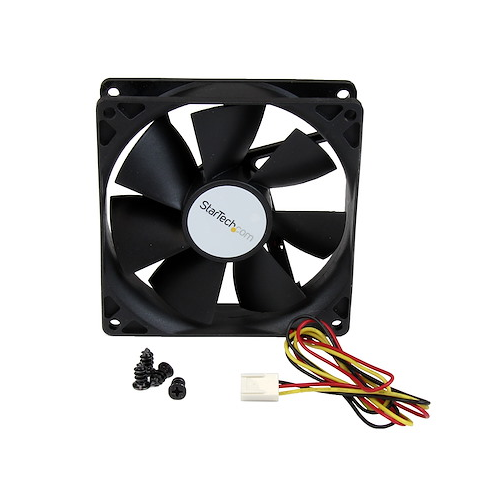

What's in the Box:
• 1 - 90mm Case Fan
• 4 - Mounting Screw
