80x25mm Computer Case Fan With 4-Pin PWM Pulse Width Modulation Connector

Product Information

Specification

80x25mm Computer Case Fan With 4-Pin PWM Pulse Width Modulation Connector

Applications:

• Lowering power consumption and fan noise on computer systems where the cooling fan does not need to run at full speed all the time
• Add an extra fan to a computer for improved system cooling
• Noisy or failed case fan replacement/upgrade

Description:

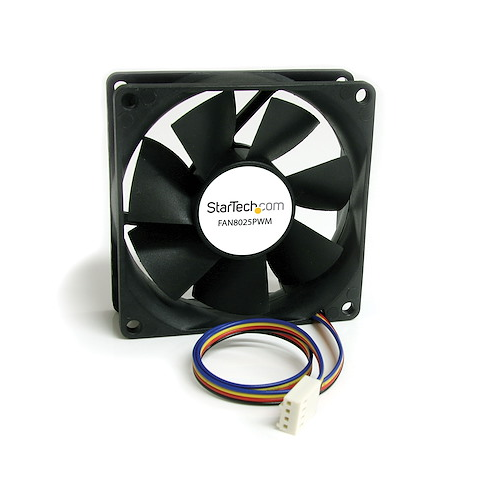

The FAN8025PWM 80mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures, to keep components running optimally.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.

Features:

• 4-pin Pulse Width Modulation (PWM) motherboard connector
• Ever Lubricate Bearing design

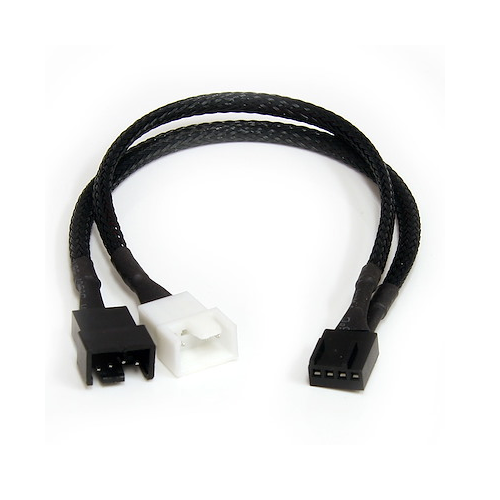

• Includes a PWM Y-split cable

Advantage:

• PWM control enables the fan to be controlled by the motherboard according to current system requirements, ensuring optimal system performance
• Ever Lubricate bearing design increases reliability and lifespan over fans with a traditional sleeve bearing design

Connector(s):

• Connector Type(s): 1 - LP4 (4 pin, PWM)

Hardware:

• Number of Conductors: 4
• Fan Bearing Type: Ever Lubricate Bearing
• Warranty 2 Years

Performance:

• Fan RPM: 800 ~ 2500 RPM
• Air Flow Rate: 9.74 ~ 25.02 CFM
• Noise Level: < 10 ~ 28 dBA
• MTBF: 40,000 Hours

Power:

• Input Voltage: 12V DC
• Input Current: 160 mA

Environmental:

• Operating Temperature: -10°C to 70°C (14°F to 158°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 0 ~ 65% RH

Special Notes / Requirements:

• System and Cable Requirements: 4-pin PWM fan connector (male)

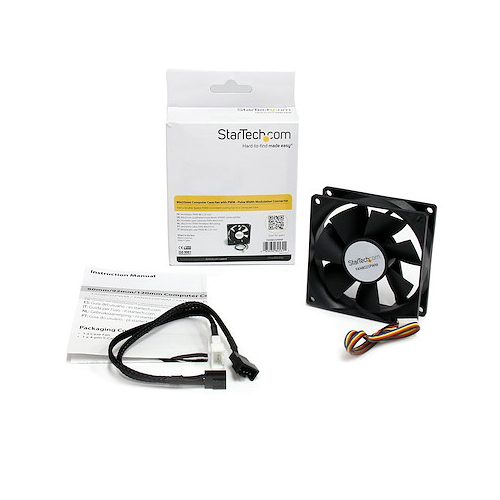

What's in the Box:

• 1 - 80mm Case Fan
• 1 - 9 inch PWM Y-Cable
