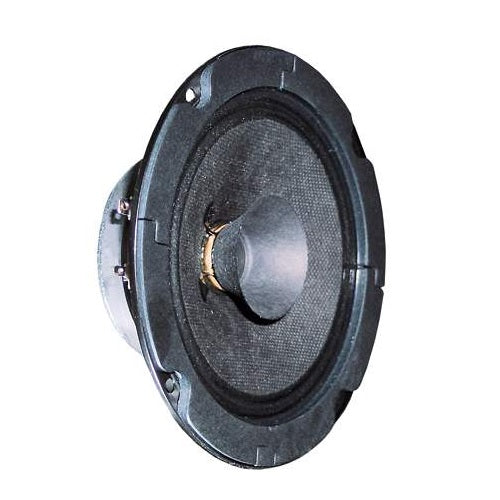

8 Ohm 5" Full Range Speaker 120–20000 Hz 20 W BG 13 P 3011
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Rated power | 20 W |
| Maximum power | 40 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | 120–20000 Hz |
| Mean sound pressure level | 92 dB (1 W/1 m) |
| Opening angle (-6 dB) | 61°/4000 Hz |
| Excursion limit | +/-2 mm |
| Resonance frequency fs | 168 Hz |
| Magnetic induction | 1.0 T |
| Magnetic flux | 190 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 4.5 mm |

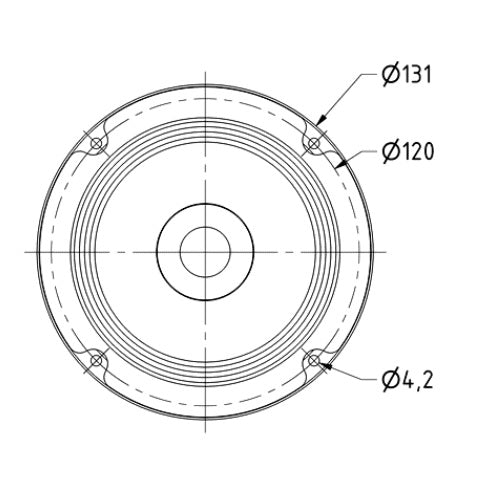

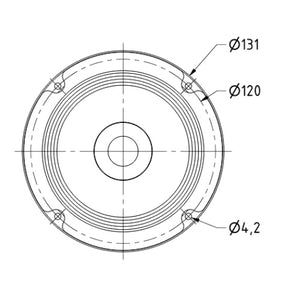

| Cutout diameter | 100 mm |
| D.C. resistance Rdc | 5.2 Ohm |
| Mechanical Q factor Qms | 3.6 |
| Electrical Q factor Qes | 1.58 |
| Total Q factor Qts | 1.04 |
| Equivalent volume Vas | 2.0 l |
| Effective piston area Sd | 68 cm² |
| Dynamically moved mass Mms | 3.0 g |
| Force factor Bxl | 3.2 Tm |
| Inductance of the voice coil L | 0.65 mH |
| Connections | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Temperature range | –25 to 70 °C |
| Part Number | 3011 |
Description:
13 cm (5") full-range speaker with tweeter dome. Very evenly spread frequency response and excellent voice reproduction quality. High level of efficiency. For use in larger scale PA arrays or in smaller monitor speakers.
Typical applications:
• PA arrays, projection speakers
• Smaller monitor speakers
Download PDF Spec Sheet
