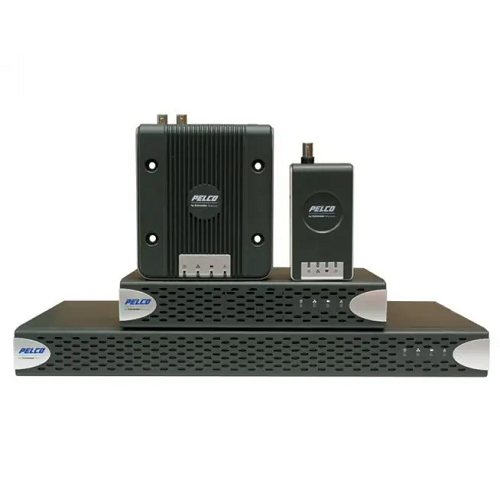

8 Channel H.264 Based Network Video Encoders NET5508-UK

Product Information

Specification

8 Channel H.264 Based Network Video Encoders NET5508-UK

Also Known As:

8 Channel, H.264, Network Video Encoder, NET5508-UK

About:

The NET5508-UK encoder is capable of compressing a single video input into two streams, each up to D1 (720 x 480 for NTSC and 720 x 576 for PAL) and 30/25 ips. With individually configurable streams, each channel of the NET5508-UK encoder can be configured to meet differing bandwidth, resolution, and frame rate requirements. The NET5508-UK is a high performance, 8 Channel video encoder that integrates analog cameras and positioning systems into an IP video surveillance system. The NET5508-UK encoder deliver crystal clear images while drastically reducing the network bandwidth and storage requirements for IP video surveillance applications. The NET5508-UK encoder are enabled for video intelligence at the edge. The analytics capabilities included with this encoder are Motion and Sabotage detection. The High profile H.264 compression option delivers outstanding picture quality at a drastically lower bandwidth. While H.264 compression provides significant bit rate savings over JPEG compression schemes, High profile H.264 enables sophisticated tools that further reduce bit rate while also improving picture quality under certain scene conditions. The NET5508-UK encoder provide Baseline, Main, and High profile H.264 compression to optimize the cost of deploying IP video surveillance while improving image quality.

Features:

• ONVIF Profile-S Conformant
• Open Standards-Based Architecture
• MJPEG and H.264 Baseline, Main, or High Profile Compression
• Dual-Stream at up to D1; 30/25 Images per Second (ips) per Stream
• Integrated Coaxitron, Panasonic Proteus, and Pelco D and Pelco P PTZ Protocols

Specifications:

• Product Type: Network Video Encoder
• No Of Channels:  8 Channel
• Part Number : NET5508-UK
