8 AWG-750 MCM Pan-Lug Powered Hydraulic Crimping Tool 12-Ton CT-2931/STBT
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:

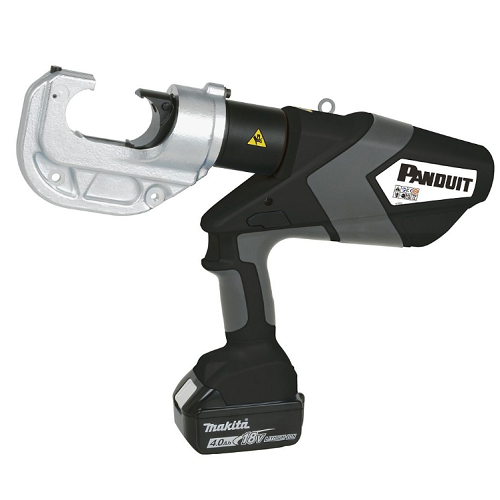

The CT-2931/STBT is a 12-ton powered hydraulic crimping tool designed to handle a wide range of wire sizes from 8 AWG to 750 MCM. It offers a combination of power, precision, and versatility, making it a preferred choice for professionals working in heavy-duty electrical installations and repairs.
Also Known As:
• Hydraulic Crimping Tool
• 12-Ton Crimper
• Heavy-Duty Crimping Machine
Common Applications:
• Electrical utility and substation installations
• Industrial and commercial electrical installations
• Renewable energy sector, particularly in solar and wind energy installations
• Railways, shipbuilding, and other heavy-duty industrial applications
Standards Met:
Meets OSHA mandated electrical and mechanical product safety requirements for Handheld Motor-Operated Electric Tools specification UL 60745-1 and CSA C22.2 No. 60745-1.
Construction:
• Body: Typically constructed with robust materials capable of withstanding rigorous use.
• Hydraulic System: Integrated to provide the necessary force for crimping large wire sizes.
• Handle: Designed ergonomically to ensure user comfort, control, and safety during operation.
Features:
embosses die number, fingertip operation, self contained, portable, ergonomically balanced
Specification:
| Tool Type: | Electrical |
| Minimum Aluminum Conductor Size (AWG): | 6 |
| Minimum Flex conductor size (AWG): | 8 |
| Minimum Metric Class 2r Wire Size (mm²): | 10 |
| Minimum Metric Class 5f Wire Size (mm²): | 10 |
| Minimum Metric Class 6f Wire Size (mm²): | 10 |
| Sub Brand: | Pan-Lug |
| For Use With: | Panduit Compression Connectors |
| Crimp Force: | 12 |
| Battery Chemistry: | Lithium-Ion |
| Jaw Opening Width: | 1.65 In. (41.9mm) |
| Overall Height: | 16.8 In. (428mm) |
| Overall Length: | 112.8 In. (324mm) |
| Overall Width: | 3 In. (75mm) |
| Product Type: | Hydraulic Crimp Tool |
| Tool Configuration: | Pistol Grip Design |
| Weight: | 7.2 Kg (15.9 lb) |
| Crimp Profile: | Circumferential |
| Base Material: | Steel |
| Battery Voltage (V): | 18 |
| Part No: | CT-2931/STBT |
Download PDF Spec Sheet
