8 AWG 4 Conductor White Jacket Round Boat Cable (Standard Lengths)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

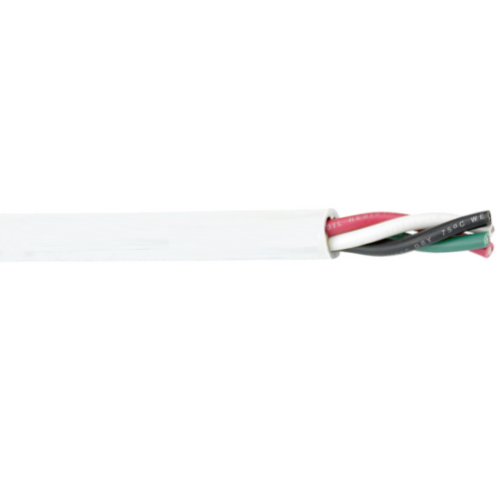

8 AWG 4 Conductor White Jacket Round Boat Cable
Also Known As:
Round Boat Cable, Highly Flexible Cable, Multi Conductor Cable, White Jacket Cable, Flatter Cable, Marine Cable
About:
Round boat cable is the ideal choice for installation where you will be dealing with tight or confined spaces like boat hulls. One thing that makes it ideal is the fact that it can bend in just about any direction. With other cables, specifically flat cables, your range of motion is severely limited. All round boat cable is manufactured in Sarasota FL, USA. 8 AWG round boat cable is UL approved. It has tinned copper conductors which provide resistance to corrosion. round boat cable is the best choice when it comes to multiconductor boat cable and it is easy to see why. First, it is made from Type III Class K finely-stranded conductors. Second, it has a high-quality flexible PVC jacket and durable insulation. This means that our round boat cable is built for longevity, durability, and flexibility. It is easily routed in any direction. It also handles the frequent flex and vibration associated with marine conditions. 8 AWG round boat cable is only available with 4 conductors. 8 AWG Round boat cable is an excellent choice for marine jobs. It is perfect for running through t-tops, sailing spars, and poling platforms.
Applications:
• round boat cable is excellent for AC and DC internal wiring of boats and recreational vehicles
Construction:
• Conductor: Annealed Fine Stranded Tinned Copper
• ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture
Standards:
• UL Standard 1426 (BC-5W2)
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant
Features:
• Type III, stranded, tinned copper conductors
• Highly flexible
• Easy to install and organize
• Easily sealed through bulkheads
Specifications:
• Size AWG: 8
• No. of Conductors: 04
• Conductor Stranding: 7x24/0.0100
• Jacket Thickness: 0.080 Inch
• Nom. O.D. : 0.830 Inch
• Jacket Color: WH
• Conductor Colors: 4 conductor - BK, GN, RD, WH
• Part Number: NNCWR8/4G
