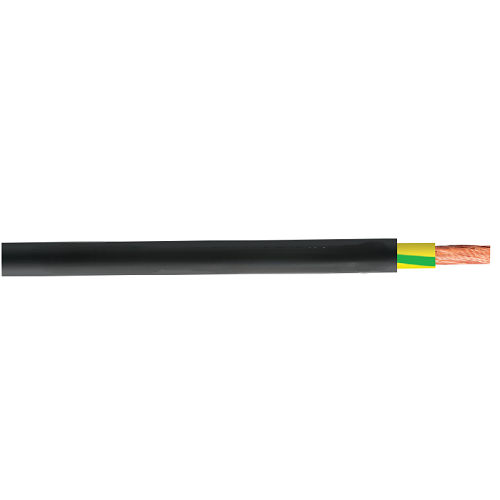

8 AWG 1C Helukabel 25889 MULTISPEED-600-PUR-J Drag Chain green-yellow Cable

8 AWG 1C Helukabel 25889 MULTISPEED-600-PUR-J Drag Chain green-yellow Cable

Applications:

This special drag chain cable permits extended use with extreme requirements, with free movement, without tensile stresses or forced movements. Suitable for installation in long traverse paths and with high speeds in dry, moist and wet environments as well as for outdoor use.

Also Known As:

8 AWG 1C Helukabel 600-PUR-J cable, Green-yellow drag chain wire, Helukabel single core PUR cable, Flexible EMC power cable PUR, 1G cable Helukabel PUR, Helukabel oil-resistant cable, UL 10553 drag chain cable, 8 AWG 1C Halogen-free green/yellow cable, PUR insulated control wire, 8 AWG 1C Helukabel machine cable.

Technical Data:

PUR sheathed single core cable acc. to UL-Std. 758 (AWM) Style 10553, CSA-Std. C22.2 No. 210 - AWM I/II A/B, in alignment with DIN VDE 0285-525-2-31 / DIN EN 50525-2-31

Temperature range
flexible -30°C to +80°C
fixed -40°C to +80°C

Nominal voltage
VDE AC U0/U 600/1000 V
UL (AWM) AC 1000 V

Test voltage
3000 V

Minimum bending radius
flexible 5x Outer-Ø
fixed 3x Outer-Ø

Cable Structure:

• Copper wire bare, extra finely stranded acc. to DIN VDE 0295 Class 6 / IEC 60228 Class 6
• Core insulation: PP
• Core identification: see table
• G = with protective conductor GN-YE, x = without protective conductor
• Outer sheath: Special grade of full polyurethane in alignment with DIN VDE 0207-363-10-2 / DIN EN 50363-10-2 (compound type TMPU)
• Sheath colour: black (RAL 9005)
• Length marking: in metres

Properties:

• resistant to: oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater
• highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
• for outdoor use
• suitable for use in drag chains
• halogen-free
• the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.

Tests:

• halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2, UL VW-1, CSA FT1
• oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404
• UV-resistant acc. to DIN EN ISO 4892-2
• weather-resistant acc. to DIN EN ISO 4892-2

Notes:

• the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
• for use in energy supply systems:
1) the assembly instructions must be observed
2) for further application parameters, please refer to the selection tables
3) for special applications, we recommend contacting us and using our data entry form for energy supply systems

Specifications:

• Size : 8 AWG
• No. cores x cross-sec. mm²: 1 G 10
• Outer Ø mm, approx.: 8.2
• Cu factor per km: 96.0
• Weight kg/km, approx: 130.0
