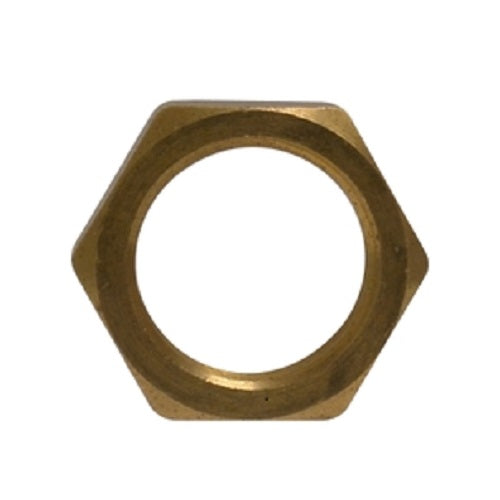

7/8"-20 UNS Jam Nut Bulkhead Brass Fittings 28321J

Product Information

Specification

7/8"-20 UNS Jam Nut Bulkhead Brass Fittings 28321J

Description:

7/8-20UNEF BRASS JAM NUT

Also Known As:

Nut , Jam Nut , Bulkhead , Brass Nut  , Brass Fittings

• Temperature and Working Pressure Ranges

From -400 F to + 1600 F at 150 PSI maximum.

• Tolerance

+/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.

• Assembly Instructions

1- Cut hose cleanly and squarely to length.

2- Slide clamp on hose.

3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.

4- Position hose clamp as shown and secure with a screwdriver or wrench. Maintain “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right)
