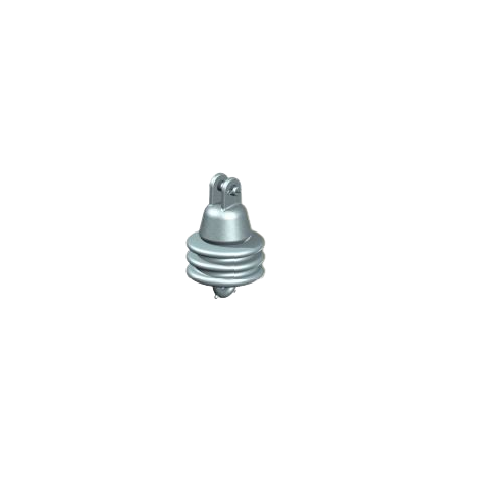

60 kv Dead End Suspension Insulators 6815-70

Product Information

Specification

About

Suspension type insulators mechanically hold the conductor thus isolating it from contact with land and other conductors. GAMMA suspensions support mechanical and electrical charges ranging from 15,000 to 25,000 lbs. and are available in all tension levels, for both distribution and transmission systems.

Porcelain suspensions are specifically designed to comply with ANSI CLASS (C29.2) standards, ensuring the performance of both the electrical and mechanical functions, as well as to satisfy all dimensional specifications and applicable requirements.

The porcelain suspensions portfolio includes FOG type insulators for high-contaminated environments. These are offered in brown or gray glaze according to customer preferences and standards for each country.

Post and cable mount hardware allow insulators to be fixed in suspension and retention designs for a perfect connection. These are manufactured in galvanized steel with different configurations, including double galvanized layer or zinc sleeve - characteristics that satisfy all mounting requirements.

Specification:

ANSI Class (C29.2A) : 52-9
Dry Arcing Distance : 4"
Leakage Distance : 7"
Combined M & E Strength, Pounds : 10000
Mech, Impact Strength, Inch.pounds : 45
Routine Proof Test Load, Pounds : 5000
Time Load Test Value, Pounds : 6000
Maximun Working Load, Pounds : 5000
Low-frequency Dry Flashover : 60
Low-frequency Wet Flashover : 30
Critical Impulse Flashover, Positive : 100
Critical Impulse Flashover, Negative : 90
Low-frequency Puncture Voltage : 80
Low-frequency Test Voltage, Rms To Ground : 7.5
Maximum RIV at 1000 kHz, µν : 50

Note 1 : ANSI 70 gray is standard. Brown or white available by request
Note 2 : Insulators can be requested with extra hot-dip galvanized layer in caps and bolts for contaminated areas

Images are only for References
