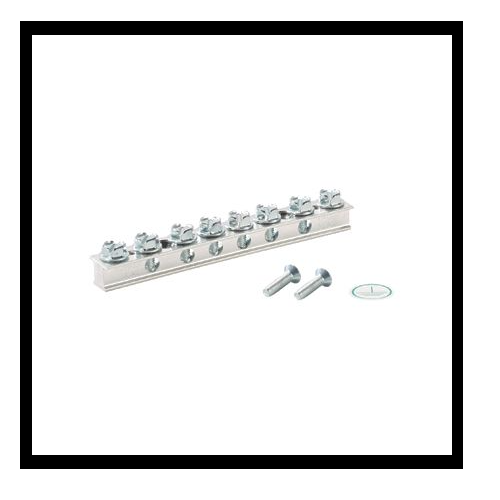

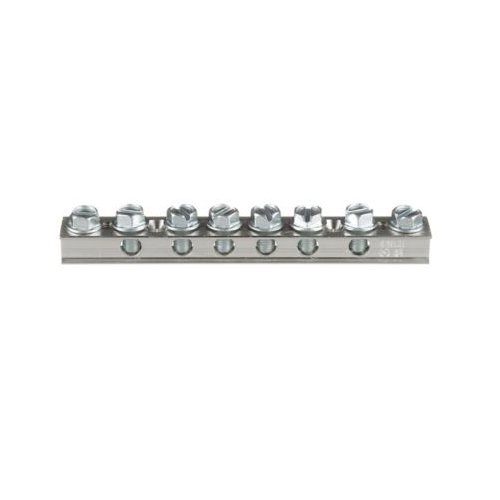

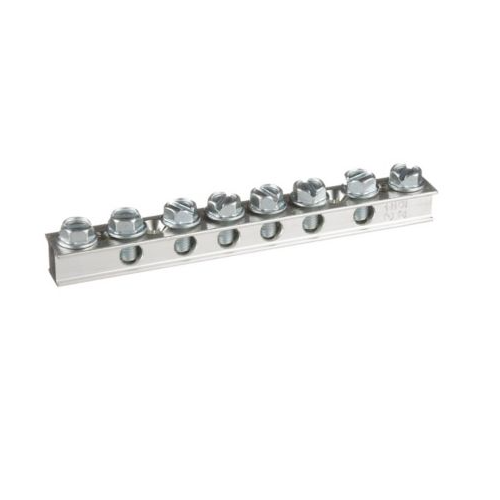

6 Ports Universal Ground Bar Copper UGB2/0-414-6

Product Information

Specification

About:

• The UGB2/0-414-6 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure.
• The universal ground bar accepts #14 – #4 AWG wire in 6 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector

Also Known As:

Copper Ground Bar, Universal Copper Ground Bar, Copper Ground Busbar, Grounding Busbar, Universal Ground Bar Copper.

Specification:

• Product Type: Grounding Busbar
• Sub Brand: StructuredGround
• Number of Ports: 6
• Compatible Wire Gauge (AWG): 4
• Overall Length (In.): 4.92
• Overall Length (mm): 125
• Overall Width (In.):  0.62
• Overall Width (mm): 15.7
• Overall Height (In.):  0.48
• Overall Height (mm): 12.2
• Material: Copper
• Mounting Hole Width (In.): 2.37
• Mounting Hole Width (mm): 2.37
• Maximum Compatible Conductor Size (AWG STR): 4
• Color: Silver
• Finish/Coating: Tin-Plated
• UPC: 07498340222

Features:

• Copper is resistant to corrosion and offers long-term durability.
• Designed for easy installation with standard hardware, facilitating quick and secure mounting in electrical systems.
• Provides a stable and consistent grounding connection, crucial for the efficient operation of electrical and electronic equipment.
