6' Mini DisplayPort to DisplayPort 1.2 Cable 4K x 2K UHD With HBR2 For Monitor

Product Information

Specification

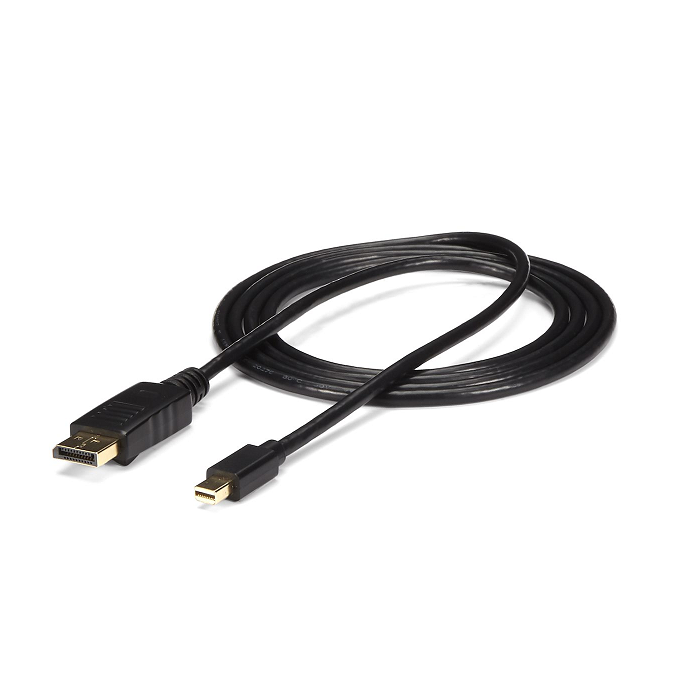

6' Mini DisplayPort to DisplayPort 1.2 Cable 4K x 2K UHD With HBR2 For Monitor

Applications:

• Connect a DisplayPort monitor or projector to devices equipped with a Mini DisplayPort connection port

Description:

The MDP2DPMM6 6ft Mini DisplayPort to DisplayPort Adapter Cable, features a Mini DP male connector on one end,
and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the
Mac family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2
bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and
provides optional audio support.
The MDP2DPMM6 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that
digitally protected content is displayed properly, with both HDCP and DPCP capability.

Features:

• MINI-DP to DISPLAYPORT 1.2 CABLE: This 6.6ft (2m) DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

• RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub structure provides EMI shielding; Latching DP connectors prevent accidental disconnection

• QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1

Specifications:

Connector(s)

• Connector A: Mini-DisplayPort (20 pin)
• Connector B: DisplayPort (20 pin)

Environmental:

• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -10°C to 70°C (14°F to 158°F)
• Humidity: 10%-85% RH

Hardware:

• Number of Conductors: 19
• Connector Plating: Gold
• Cable Jacket Material: PVC - Polyvinyl Chloride
• Fire Rating: CMG Rated (General Purpose)

Performance:

• Maximum Digital Resolutions: 4k x 2k (3840 x 2160) @ 60Hz
