6 Fiber Reduced Water Peak Singlemode PFM Buried FTTP Steel Armor Cable Black 520063U01

Product Information

Specification

About :

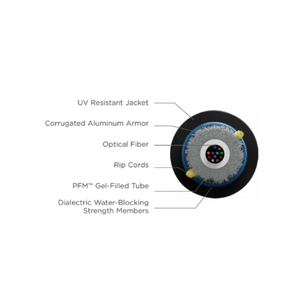

Reduced Water Peak Singlemode Buried FTTP cables are designed for Outside Plant (OSP) applications, specifically as a drop cable. The reduced diameter maximizes duct space and offers additional armoring protection. The loose tube design offers reliable transmission performance over a broad temperature range. The durable single loose tube design features optical fibers placed inside a single PFM gel-filled tube. The core tube is then helically wrapped with water-blocking strength members. A corrugated steel armor is applied and encased with a black jacket. Rip cords are included to speed access to the fibers.

Also Known as :

6 Fiber Count, Singlemode Cable, SM Burried Cable, FTTP 6 Fiber Cable, RWP Singlemode, RWP SM, Steel Armored Cable, Broadband Cable.

Standards Compliance:

• Telcordia GR-20-CORE
• RDUP PE-90 Designation 523
• RoHS-compliant

Applications:

• Drop cables
• Broadband network
• Local loop
• Fiber to the premise

Benefits:

• Additional compressive strength and rodent protection
• Multiple network applications
• Eliminates grounding or bonding problems
• Installation of more fibers in less space, reduced cost
• Non-sticky gel allows for easier and faster clean up

Features:

• Corrugated steel armor
• Dielectric outer strength members
• Highly flexible
• Small cable diameter
• Dry (SAP) core design, PFM Gel

Specifications:
