6 Fiber OFCP OM4 MM Indoor/Outdoor Interlock Armored TB Fiber Cable Black L4006PW01

Product Information

Specification

About:

Interlock Armored Optical Fiber Cables provide an extremely well protected cable package ideally suited for harsh environments. The armor is available in aluminum and comes with an OFCP (plenum). This design offers the system designer a product that can be installed in areas where added mechanical protection and security are required. The flexible interlock armored cable design is also popular for retrofit applications and eliminates the need to install rigid conduit while still meeting building code guidelines.

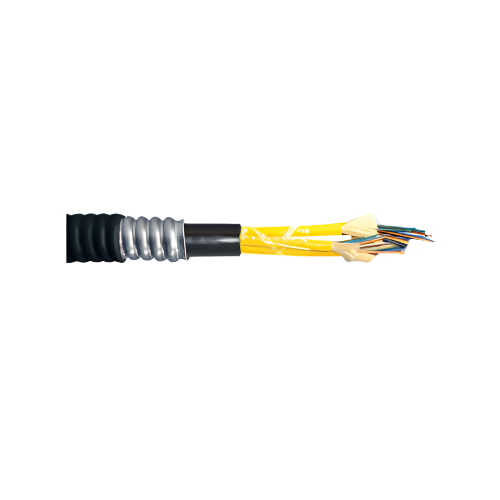

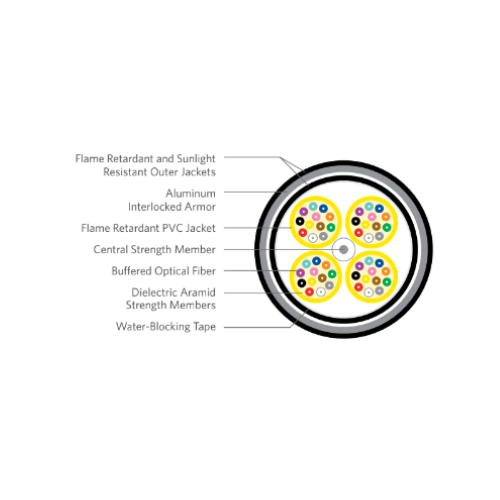

Interlock Armored: Flexible, heavy duty interlocking aluminum tape helically applied over the inner cable core; further protection is provided by flame retardant outer jacket
Performance Compliance: UL 1569, UL 1651, CSA C22.2 No. 232, UL 1666, NFPA 262, Telcordia GR-409-CORE, Issue 2, ANSI/ICEA S-104-696, ANSI/TIA-568.3-D.

Also Known as:

6 Fiber Plenum Cable, TeraFlex Bend Resistant Laser Optimized 50/125, Multimode Optical Fiber Cable, Non-Riser Cable, Non-Riser Multimode, OM4 Plenum Cable, OM4 Tight Buffer, OM4 Interlock Armor Cable.

Applications:

• Intrabuilding backbones
• Conduit pathways
• Service entrance to communication closets

Benefits:

• Reduce incidences of circuit disruption due to rodents or mechanically abusive applications
• Eliminates the need for multiple cables for installation

Features:

• Thick, flexible metallic armor
• Flame retardant, UL Listed designs

Specifications:

*Image is an illustration purpose only, may not reflect the exact color sold.
