6 AWG Seamless Tinned Butt Splice (Pack of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification

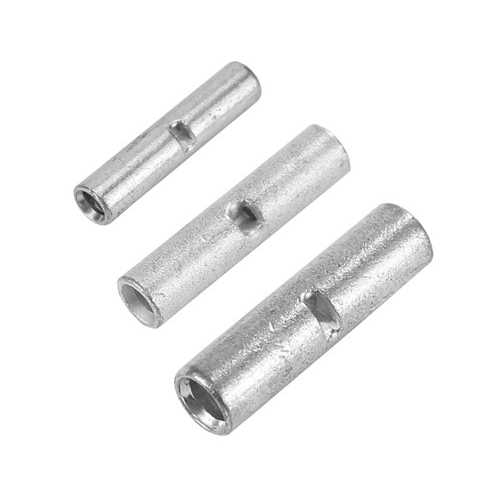

6 AWG Seamless Tinned Butt Splice
Also Known As:
Seamless Tinned Butt Splice, Tin Plated, Terminals & Connectors, Electrolytic Tough Pitch
About:
Butt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and you're done. We would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.
Construction:
• RoHS Compliant
• UL & CSA Approved
• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
Features:
• Seamless
• Tin Plated
Specifications:
• Gauge Size: 6
• Length: 1.03"
• O.D. (IN): 0.35"
• Material Thickness: 0.06"
• Material (Plating): Tin Plated
• Part Number: TBS6-25
Download PDF Spec Sheet
