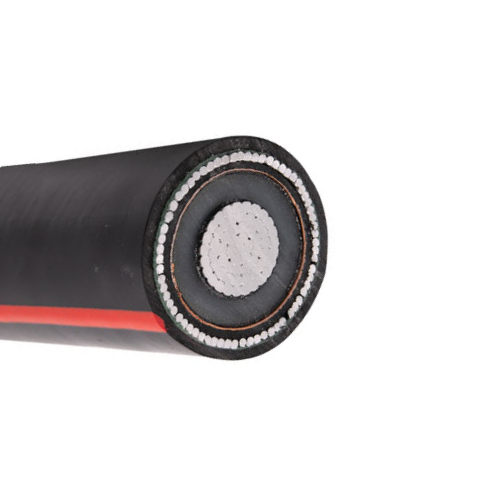

500 kcmil copper-filled round strand with SC-EPR insulation and 260 Extruded Ethylene Propylene Rubber cable

500 kcmil copper-filled round strand with SC-EPR insulation and 260 Extruded Ethylene Propylene Rubber cable

Applications:

Compact Round Class B Strand, Copper-filled, 500 kcmil grand. Extruded Semiconducting, SC-EPR, With 260 EP rubber, steadfast bar.1/C 500 CLASS B COPPER C-RD FILLED STRAND -SS- 260 OKOGUARD EPR - 024 SC EPR - 15 X 175X020 COPPER FLAT STRAPS - 050 OKOLENE PE - SEQ PRINT - 25KV

Also Known As:

500 KCMIL cable, 500 KCMIL cable, 500 KCMIL Class B Strand Tinned Copper, 500 KCMIL Ethylene Propylene Rubber.

Construction

Conductors:

500 kcmil Compact Round Class B Strand Copper FILLED STRAND

CONDUCTOR SCREEN:

Extruded Semiconducting (SC-EPR)

INSULATION:

260 Extruded Ethylene Propylene Rubber OKOGUARD®

INSULATION SCREEN:

Extruded Semiconducting (SC-EPR)

CONC. FLAT STRAPS:

15 X 175 X 020 Bare Copper Flat Straps

JACKET:

050 Encapsulated OKOLENE® LLDPE (Linear Low Density Polyethylene)

Specifications:

• Conductor Diameter (in.): 0.735
• Cond. Screen Diameter (in.): 0.775
• Insulation Diameter (in.):  1.317
• Insul. Screen Diameter (in.): 1.377
• Flat Straps Diameter (in.): 1.417
• Outer Jacket Diameter (in.): 1.527
• Cable Weight (lbs./M'): 2468
