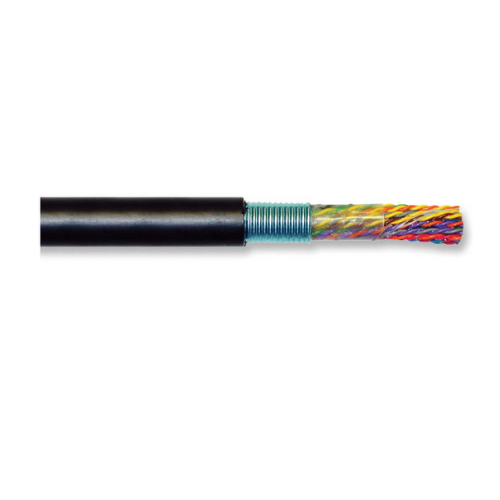

50 Pair 24 AWG Cat5 Broadband Solid Copper Outdoor Cable Black 04-100-31 5000 ft Reel
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
MEGAPIC Category 5 cables provide an extension of the LAN beyond the premises. These cables are ideal for direct burial, underground and lashed aerial applications.
Also Known as :
50 Pair Count, 50 Pair Cable, 24 AWG Solid Cable, 24 Pair Direct Burial Cable, Cat5 Broadband Cable, CAT 5 OSP Broadband.
Specifications :
| Pair Count | 50 |
| Gauge | 24 AWG |
| Length | 5000 feet |
| Nominal Diameter | 0.92 inch / 23.4 mm |
| Conductor | Solid annealed copper |
| Jacket | Black, Polyethylene |
| Part Number |
04-100-31 |
Filling Compound: 80°C ETPR (extended thermoplastic rubber)
Core Wrap: Non-hygroscopic dielectric tape
Shield: MEGAPIC-NF: Electrically continuous 0.008 in (0.20 mm) polymer coated
corrugated aluminum tape, applied with an overlap and shield interface is flooded.
Applications :
• 10BASE-T
• ATM and token ring
• ADSL, VDSL, VDSL+
• MEGAPIC-NF: Higher pair count shielded distribution cable for use in lashed aerial, direct burial and duct installations
Benefits :
• Extends the LAN to the entire campus
• Facilitates grounding according to NEC requirements
• Helps prevent intrusion of moisture
Features :
• Transmission performance characterized to 100 MHz
• Metallic shield tapes
• Fully filled constructions
