50 Pair 24 AWG Cat3 CMR Riser PVC Jacket UTP Solid Copper Cable Beige 18-599-13

Product Information

Specification

About :

The ideal choice for LAN transmission with specified bandwidth up to 16 MHz. These cables are used for voice and data communications and can handle application bandwidths up to 16 MHz. Other uses for these cables include indoor use on customer premises for the interconnection of telephone key systems, PBX and intercom systems. Product is offered for riser (CMR) applications.

Also Known as :

50 Pair 24 AWG Cable, UTP Cable, CAT3 Cable, 50 Pair Cat3 Cable, Riser Cable, Cat3 Riser Cable, PVC Jacket Cable, CMR Cable, Unshielded Twister Pair (UTP) Cable.

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• NFPA 262
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant

Applications:

• 4 Mbps token ring (IEEE 802.5)
• Analog voice
• 10 Mbps 10BASE-T Ethernet (IEEE 802.3)
• Telecommunications closet wiring

Benefits:

• Easier and less time-consuming installations, no kinking of outer jacket
• Improves backbone sub-system identification, reduces labor and mistakes

Features:

• CMR and CMP constructions use extremely flexible, FR-PVC jacket
• Jacket color options

Specifications :

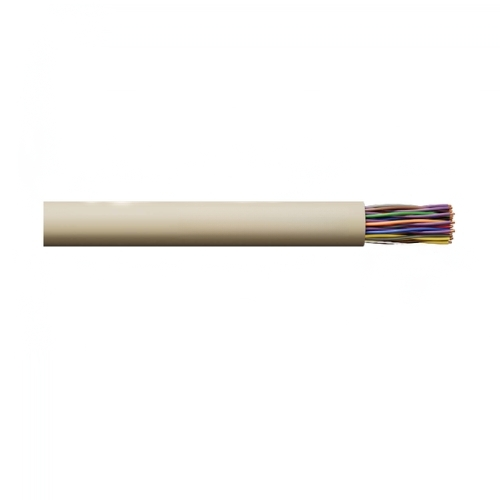

*Image is an illustration purpose, may not reflect the color of the exact product.
